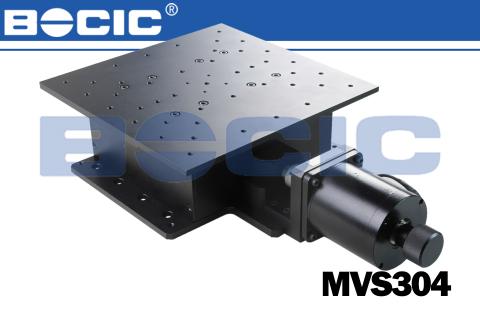

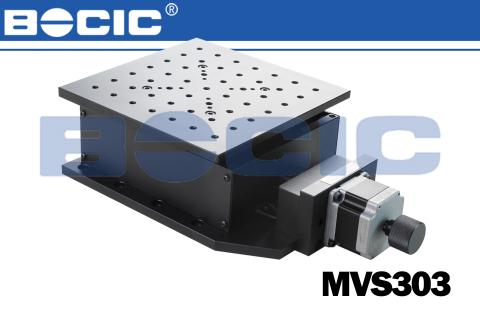

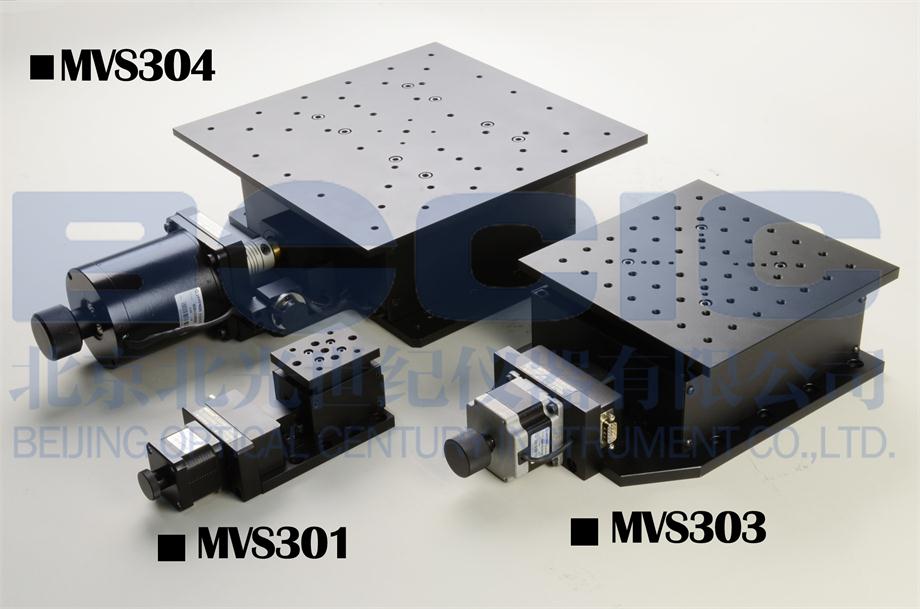

MVS300 series motorized vertical translation stages
1.Actuated with high precision ball screw
or screw andcross roller guides.
2.Vertical motion is translated through two
precision-machined, opposing wedge blocks,allowing
for stable operationand high position precision.

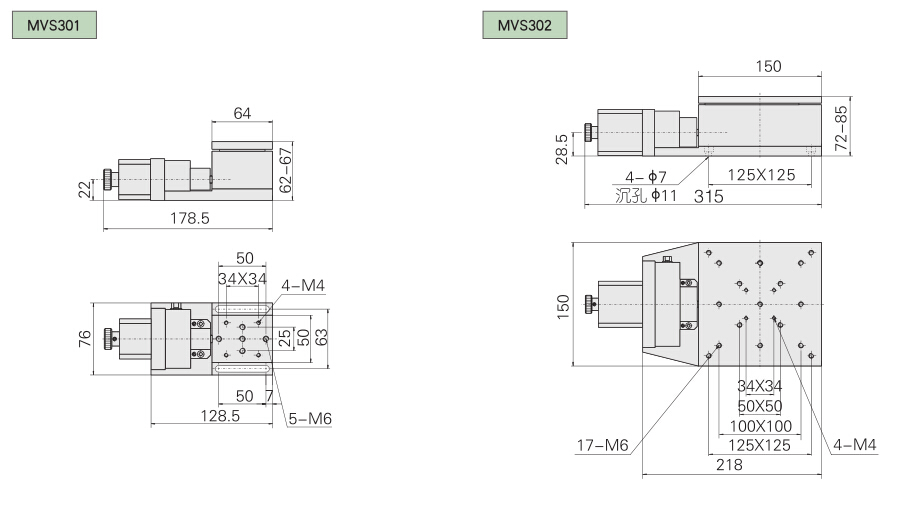

- description
- parameters
|
Model |
MVS301 |
MVS302 |
MVS303 |
MVS304 |
|
Travel（mm） |
5 |
13 |
25 |
30 |
|
Table size (mm） |
64×50 |
150×150 |
200×200 |
300x300 |
|
Gear ratio |
2：1 |
|||
|
Screw pitch（mm） |
0.5 |
1.5 |
1.5 |
1 |
|
Resolution（mm） |
0.00002 |
0.00004 |
0.0006 |
0.00004 |
|
Resetting positioning accuracy (mm） |
0.003 |
|||
|
Maximum speed (mm/s) |
6.25 |
12 |
18 |
12 |
|
Stepper motor（1.8°） |
42 stepper motor |
56 stepper motor |
86 stepper motor |
|
|
Loading capacity(kg) |
10 |
30 |
40 |
80 |
|
Weight（kg） |
1 |
5.5 |
8 |
16.5 |
