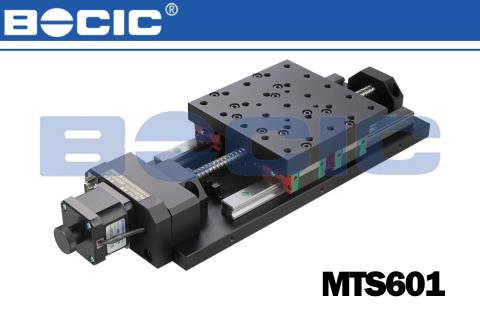

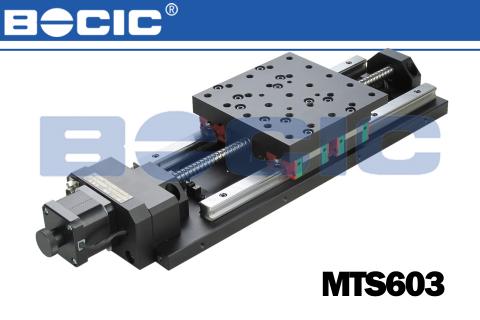

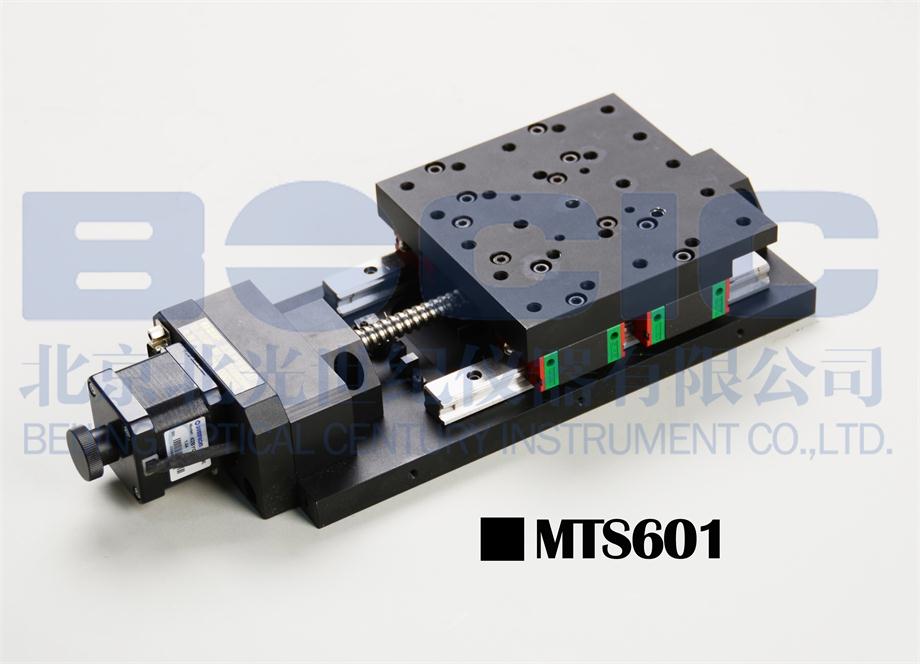

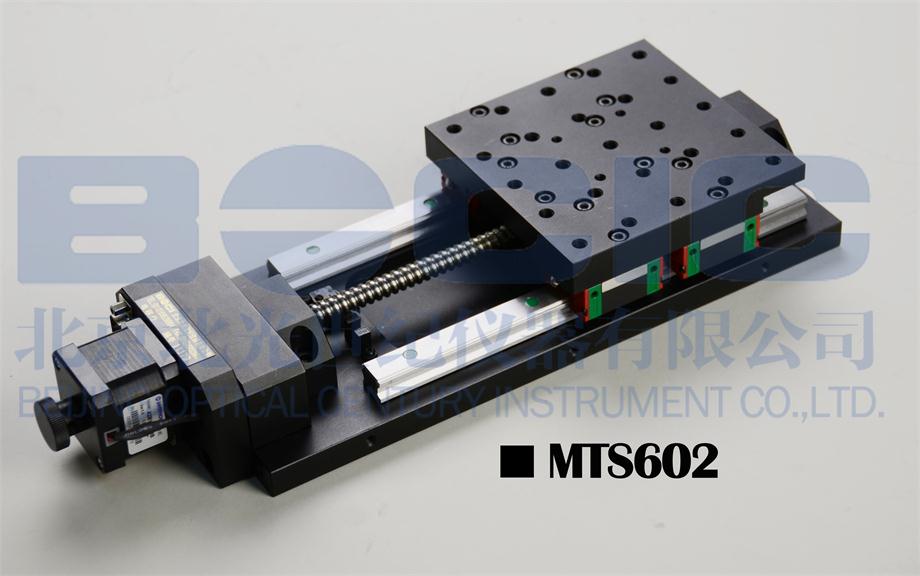

MTS600 series motorized percision translation stages
1.Actuated withsuper highprecision ball screw andlinear guides
2.Super high precision ,large bearing capacity
3.Grating encoderscan be addedto realize closed-loop control.
- description
- parameters
|
Model |
MTS601 |
MTS602 |
MTS603 |
MTS604 |
|
Travel（mm） |
50 |
100 |
150 |
200 |
|
Table size (mm） |
120×120 |
150×120 |
||
|
Guides |
Linear guides |
|||
|
Screw pitch（mm） |
4 |
|||
|
Resolution（mm） |
0.00032 |
|||
|
Maximum speed (mm/s) |
20 |
40 |
||
|
Resetting positioning accuracy (mm） |
＜0.001 |
|||
|
Axial clearance (mm） |
＜0.004 |
|||
|
Stepper motor（1.8°） |
42stepper motor |
|||
|
Maximum static torque (Ncm) |
40 |
50 |
||
|
Loading capacity(kg) |
20 |
30 |
||
|
Weight（kg） |
4 |
6 |
8.5 |
12.5 |
|
Comment |
The product can be used in vacuum environment and increase dust cover，but you need to have it made to order. |
|||
