MTS400/420/440 series motorized translation stages
1.Actuated withball screw andlinear guides
2.Highprecision,large bearing capacity
3.Made ofaluminum alloy, light weight.
4.The dust cover is made of stainless steel material with high heat and laser resistance.
5.The controller uses standard RS232 interface
6.Zero position photoelectric switch is included. Travel limit switches are located at both ends of the stage for accurate positioning and protection.
7.Servo motors can be used instead of standard stepper motors.
8.Thelength of the stagecan be customized.
9.Locations of the limit switches and mounting tabs can be adjusted.
- description
- parameters
|

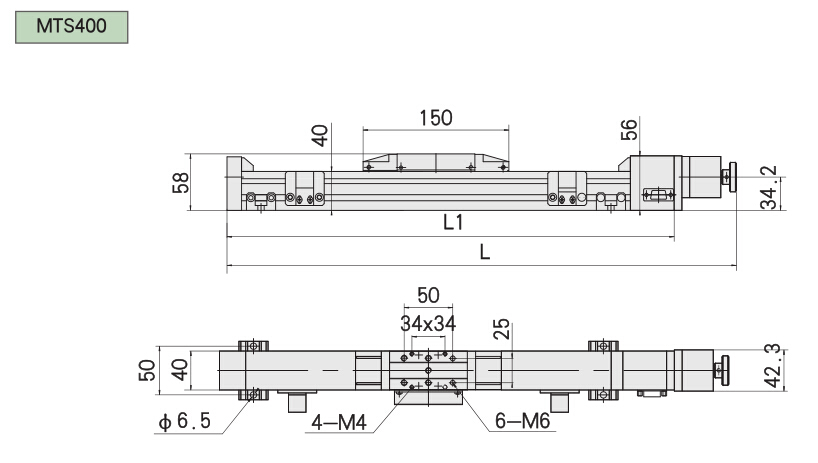

Model |
MTS401 |
MTS402 |
MTS404 |
MTS405 |
|
Travel（mm） |
100 |
200 |
400 |
500 |
|
L（mm） |
424 |
524 |
724 |
824 |
|
Table size (mm） |
40×150 |
|||
|
Guides |
Linear guides |
|||
|
Screw pitch（mm） |
2.5 |
|||
|
Resolution（mm） |
0.0005 |
|||
|
Maximum speed (mm/s) |
15 |
|||
|
Resetting positioning accuracy (mm） |
±0.02 |
|||
|
Stepper motor（1.8°） |
42 stepper motor |
|||
|
Maximum static torque (Ncm) |
20 |
40 |
50 |
|
|
Loading capacity(kg) |
9（level） |
7（level） |
||
|
Weight（kg） |
3.5 |
4.5 |
6.7 |
8 |
|

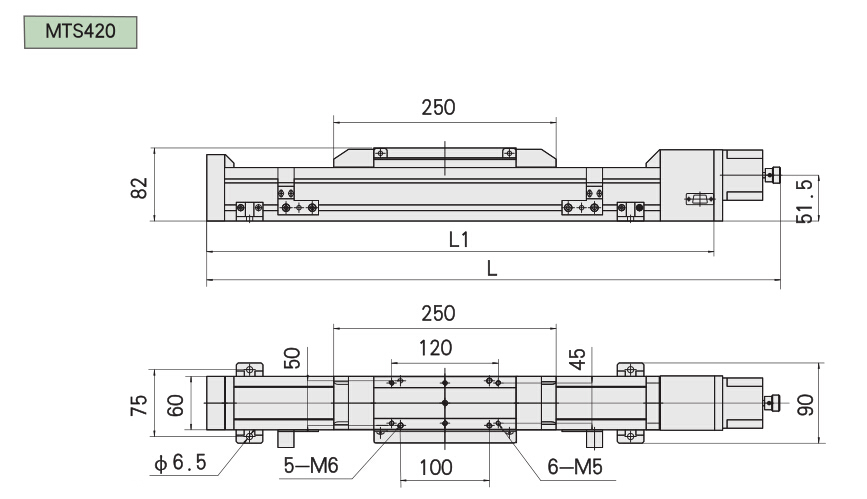

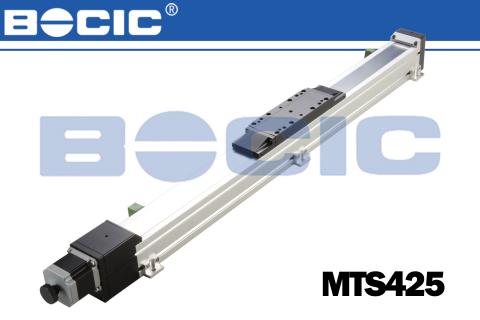

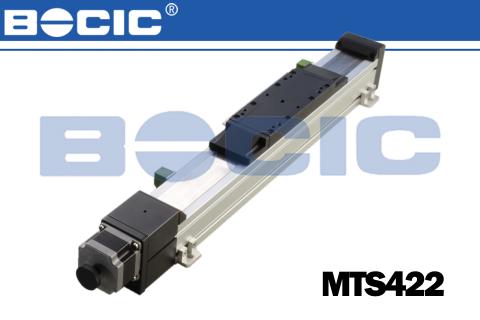

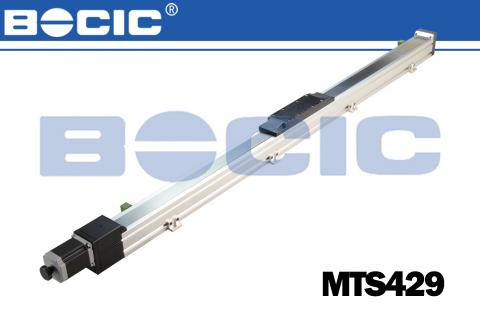

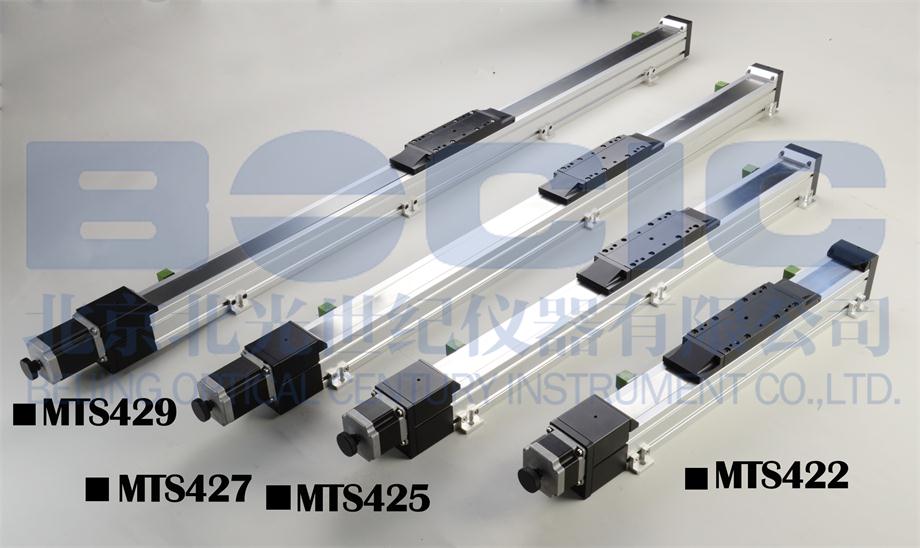

Model |
MTS422 |
MTS425 |
MTS427 |
MTS429 |
|
Travel（mm） |
200 |
500 |
800 |
1000 |
|
L（mm） |
650 |
960 |
1280 |
1480 |
|
Table size (mm） |
60×250 |
|||
|
Guides |
Linear guides |
|||
|
Screw pitch（mm） |
4 |
|||
|
Resolution（mm） |
0.0005 |
|||
|
Maximum speed (mm/s) |
30 |
|||
|
Resetting positioning accuracy (mm） |
±0.02 |
|||
|
Stepper motor（1.8°） |
56 stepper motor |
|||
|
Maximum static torque (Ncm) |
60 |
100 |
170 |
|
|
Loading capacity(kg) |
15（level） |
10（level） |
||
|
Weight（kg） |
6.5 |
10 |
12 |
13.5 |
|
Model |
MTS442 |
MTS445 |
MTS448 |
MTS449 |
|
Travel（mm） |
200 |
500 |
800 |
1000 |
|
L（mm） |
677 |
986 |
1308 |
1508 |
|
Table size (mm） |
80×260 |
|||
|
Guides |
Linear guides |
|||
|
Screw pitch（mm） |
5 |
|||
|
Resolution（mm） |
0.0005 |
|||
|
Maximum speed (mm/s) |
30 |
|||
|
Resetting positioning accuracy (mm） |
±0.02 |
|||
|
Stepper motor（1.8°） |
56 stepper motor |
|||
|
Maximum static torque (Ncm) |
60 |
100 |
170 |
|
|
Loading capacity(kg) |
50（level） |
47（level） |
43（level） |
40（level） |
|
Weight（kg） |
9.5 |
14 |
16.5 |
18.5 |
