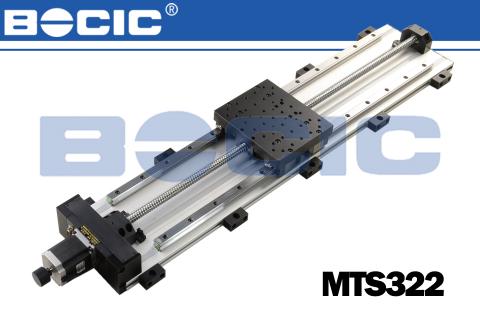

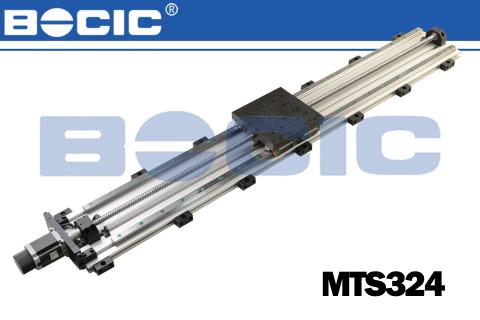

MTS320 series motorized long travel translation stages
1.Actuated withlong-travel ball screwandlinear guides
2.Highprecision,large bearing capacity
3.The controller uses standardRS232 interface
4.Zero position photoelectric switch is included. Travel limit switches are located at both ends of the stage for accurate positioning and protection.
5.Additional power-off protector is available for vertical operation.
- description
- parameters
|
Model |
MTS321 |
MTS322 |
MTS323 |
MTS324 |
MTS325 |
MTS326 |
MTS327 |
|||
|
Travel（mm） |
600 |
800 |
1000 |
1200 |
1500 |
2000 |
2400 |
|||
|
Table size (mm） |
150×150 |
150×150 |
180×180 |
180×180 |
200×200 |
300×300 |
300×300 |
|||
|

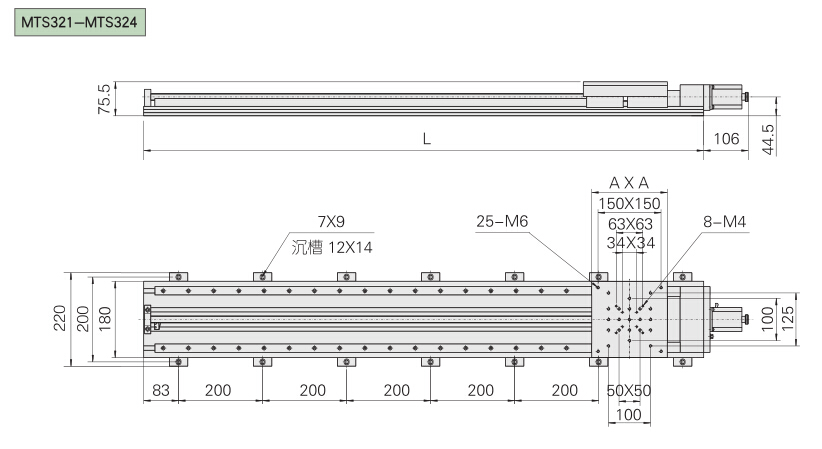

L（mm） |
900 |
1100 |
1330 |
1530 |
1990 |
2490 |
2890 |
|||
|
Guides |
Linear guides |
|||||||||
|
Screw pitch（mm） |
5 |
|||||||||
|
Resolution（mm） |
0.00039 |
|||||||||
|
Maximum speed (mm/s) |
40 |
|||||||||
|
Resetting positioning accuracy (mm） |
＜0.004 |
|||||||||
|
Axial clearance (mm） |
＜0.006 |
|||||||||
|
Stepper motor（1.8°） |
56 stepper motor |
86 stepper motor |
||||||||
|
Maximum static torque (Ncm) |
1 |
1.7 |
5 |
|||||||
|
Loading capacity(kg) |
50 |
|||||||||
|
Weight（kg） |
20 |
27 |
34 |
40 |
44 |
49 |
55 |
|||
