MTS220 series thin design motorized translation stages
1.Actuated with high precision cross ball
screw rail.
2. Small and thin, high precision, large bearing capacity.
3. Controller usesstandard RS232 interface
5.Zero position photoelectric switch is
included. Travel limit switches are located at both ends of the stage for accurate positioning and protection.
6.Can operate in vacuum environment
after necessary modification.
- description
- parameters
|
Model |

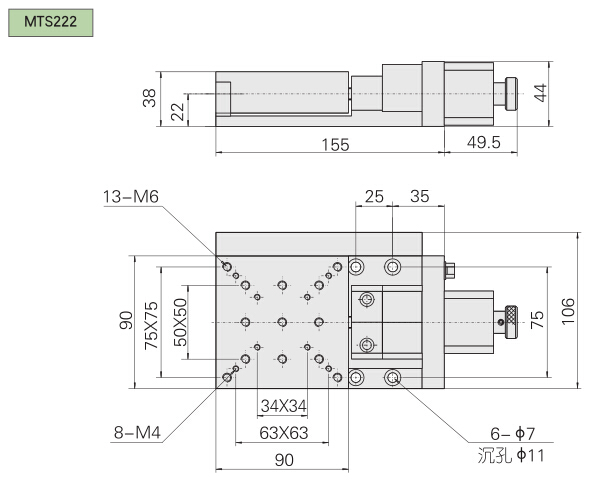

MTS222 |

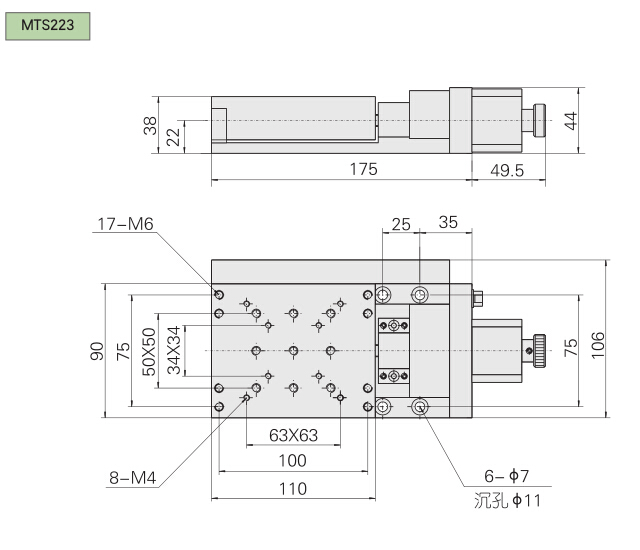

MTS223 |
|
Travel（mm） |
30 |
50 |
|
Table size (mm） |
90×90 |
90×110 |
|
Guides |
cross roller bearing guides |
|
|
Screw pitch（mm） |
2.5 |
|
|
Resolution（mm） |
0.0002 |
|
|
Maximum speed (mm/s) |
20 |
|
|
Resetting positioning accuracy (mm） |
＜0.005 |
|
|
Axial clearance (mm） |
＜0.03 |
|
|
Stepper motor（1.8°） |
42 stepper motor |
|
|
Maximum static torque (Ncm) |
40 |
|
|
Loading capacity(kg) |
20 |
|
|
Weight（kg） |
2.2 |
2.8 |
|
Comment |
The product can be used in vacuum environment，but you need to have it made to order. |
|
