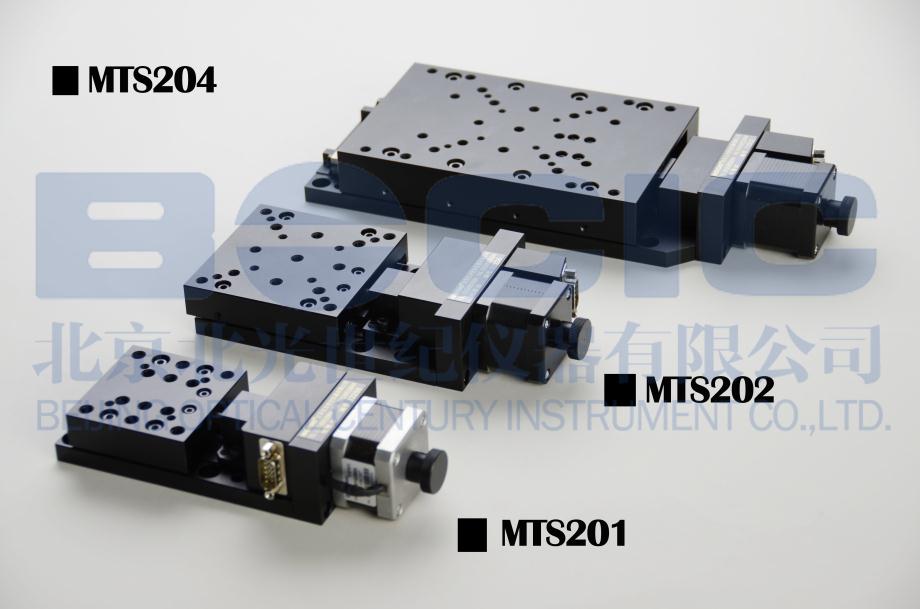

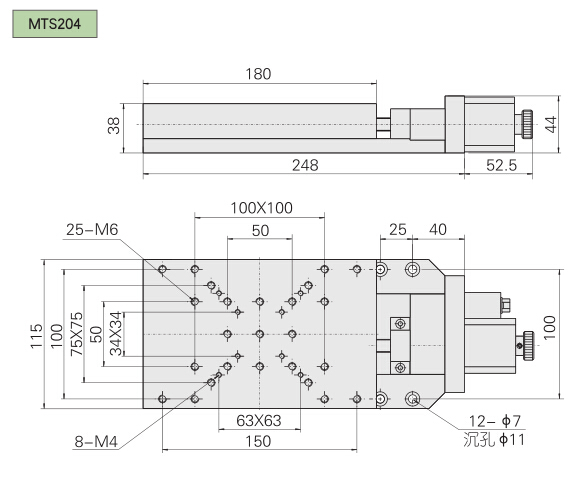

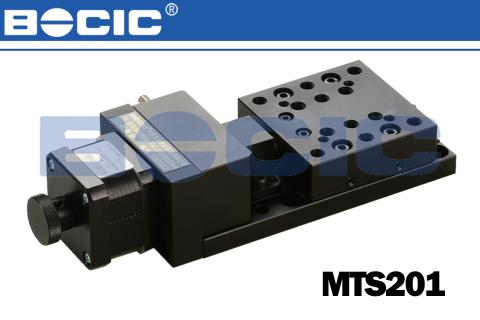

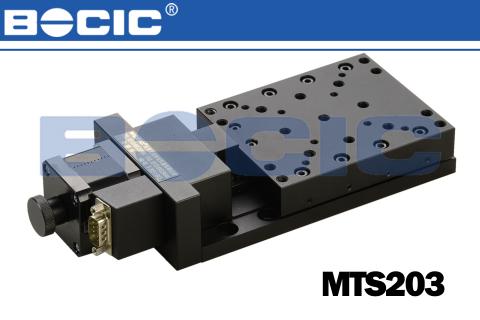

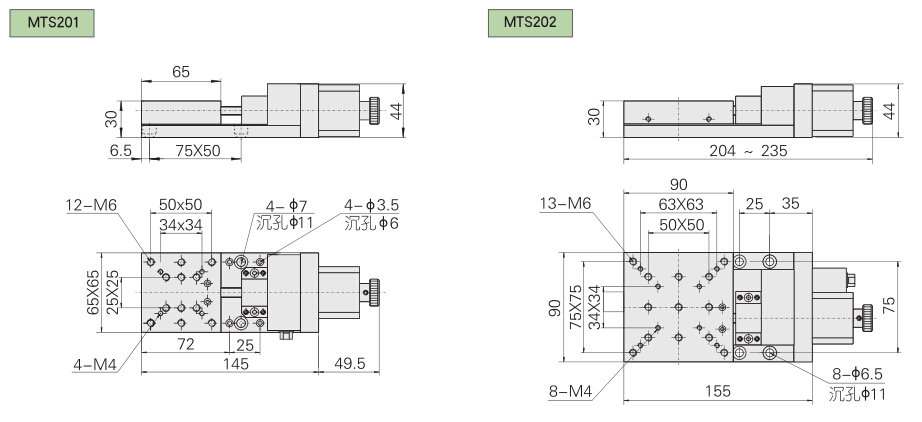

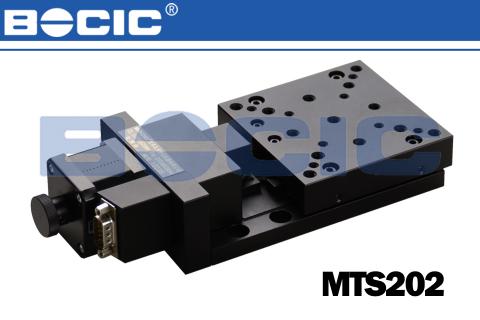

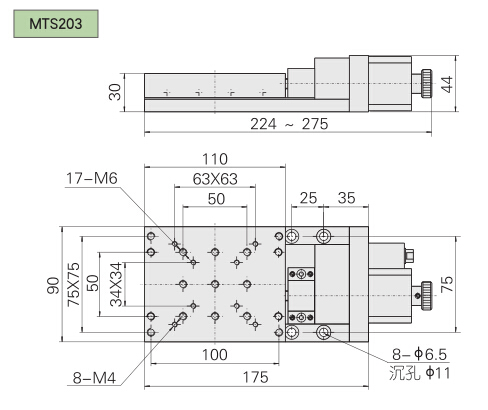

MTS200 series thin design motorized translation stages
1.Actuated with high precision cross ball
screw rail.
3.Controller usesstandard RS232 interface
4.Zero
position photoelectric switch is included. Travel limit switches are located at
both ends of the stage for accurate positioning and protection.
5.Can be used in vacuum environment after necessary modification.
- description
- parameters
|
Model |
MTS201 |
MTS202 |
MTS203 |
MTS204 |
|
|
Travel（mm） |
15 |
30 |
50 |
100 |
|
|
Table size (mm） |
65×65 |
90×90 |
90×110 |
115×180 |
|
|
Guides |
V shape guides＋cross roller bearing guides |
||||
|
Screw pitch（mm） |
0.5 |
1 |
|||
|
Resolution（mm） |
0.000039 |
0.000078 |
|||
|
Maximum speed (mm/s) |
10 |
||||
|
Resetting positioning accuracy (mm） |
＜0.003 |
||||
|
Axial clearance (mm） |
＜0.005 |
||||
|
Stepper motor（1.8°） |
42 stepper motor |
||||
|
Maximum static torque (Ncm) |
40 |
||||
|
Loading capacity(kg) |
10 |
12 |
|||
|
Weight（kg） |
0.8 |
1.3 |
1.5 |
2.8 |
|
|
Comment |
The product can be used in vacuum environment，but you need to have it made to order. |
||||
