MRS400 series motorized precision rotary stages
1.High precisionangular contact ball bearings
2.The
transmission adopts worm and worm gear structures
3.Large bearing
capacity.
4.Controller
usesstandard RS232 interface.
- description
- parameters
|
Model |

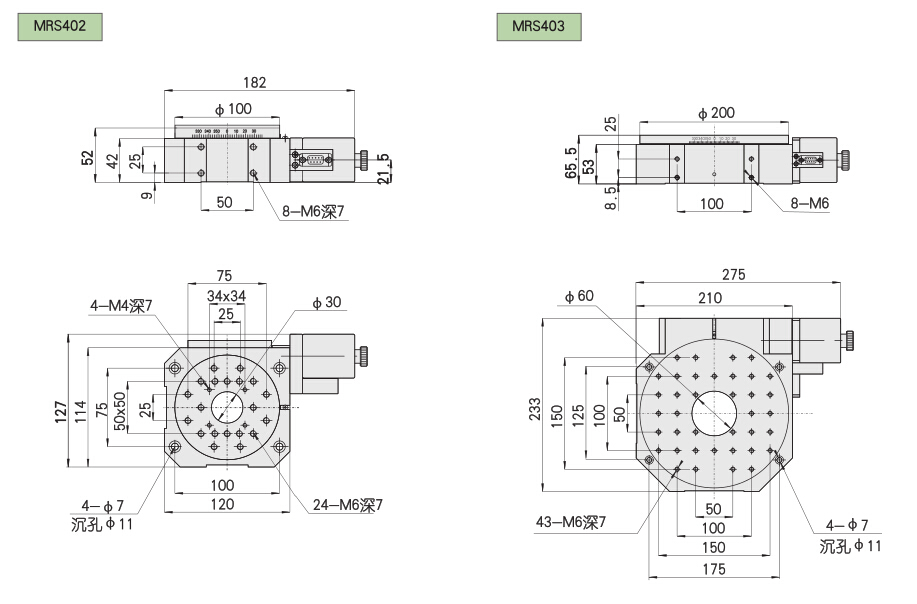

MRS402 |
MRS403 |

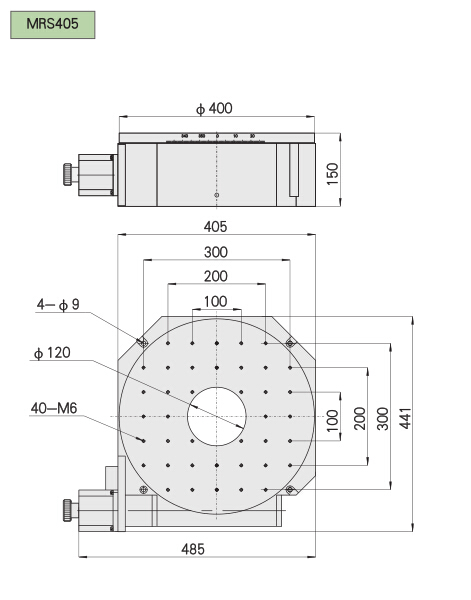

MRS405 |
|
Stage size（mm） |
φ100 |
φ200 |
φ400 |
|
Gear ratio |
90：1 |
180：1 |
180：1 |
|
Resolution |
0.0002° |
0.0002° |
0.0005° |
|
Resetting positioning accuracy |
＜0.005° |
||
|
Radial runout（μm） |
＜30 |
||
|
Axial runout（μm） |
＜30 |
||
|
Maximum speed |
20°/s |
20°/s |
12.5°/s |
|
Stepper motor（1.8°） |
42 stepper motor |
56 stepper motor |
86 stepper motor |
|
Loading capacity(kg) |
70kg |
100kg |
300kg |
|
Weight（kg） |
9 |
18 |
80 |
