MRS110 series motorized precision rotary stages

    1. The rotary stage incorporateshigh precision THK rotation systems.

    2.The transmission adopts worm and worm gear structures.

    3.Zero position photoelectric switches can be added.

    4.Servo motors can be used instead of stepper motors.

    5.Controller uses standard RS232 interface.




  • description
  • parameters

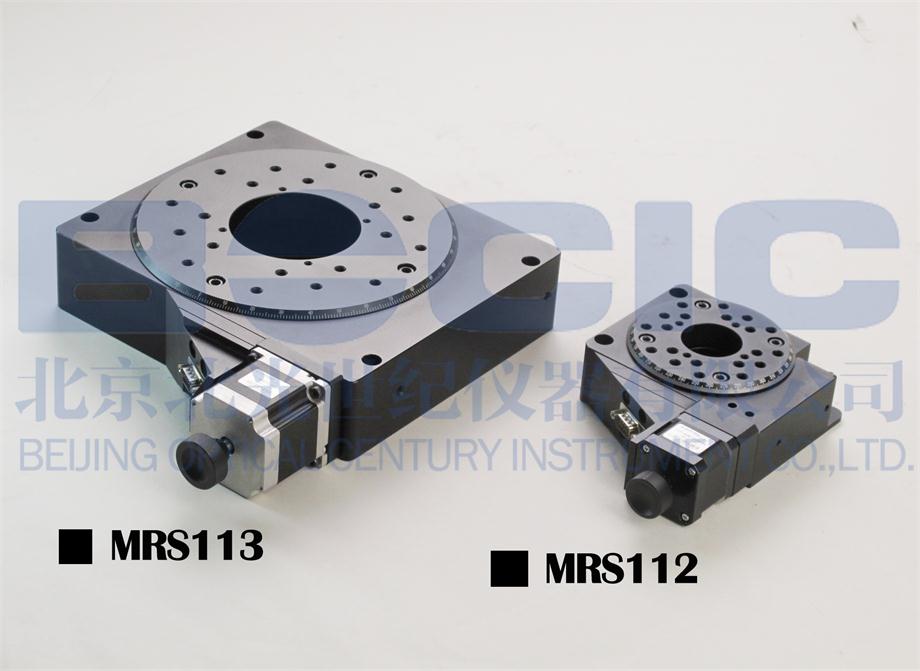

MRS110 series motorized precision rotary stages




1. The rotary stage incorporateshigh precision THK rotation systems.

2.The transmission adopts worm and worm gear structures.

3.Zero position photoelectric switches can be added.

4.Servo motors can be used instead of stepper motors.

5.Controller uses standard RS232 interface.




Related Products

STEPPER MOTOR CONTROLLERS        MOTORIZED POSITIONING UNITS





Model

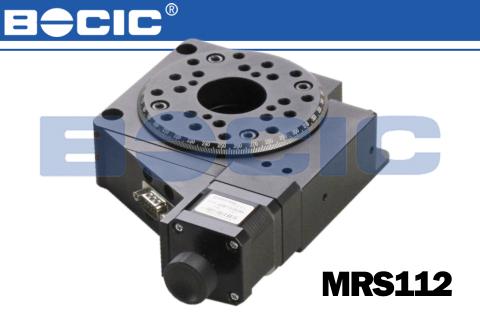

MRS112

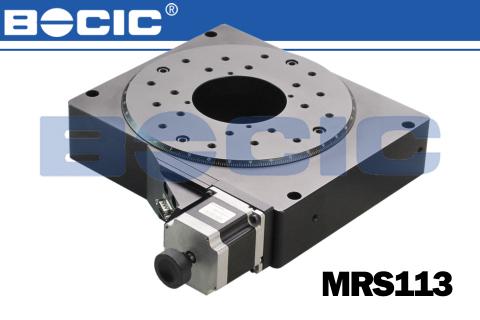

MRS113

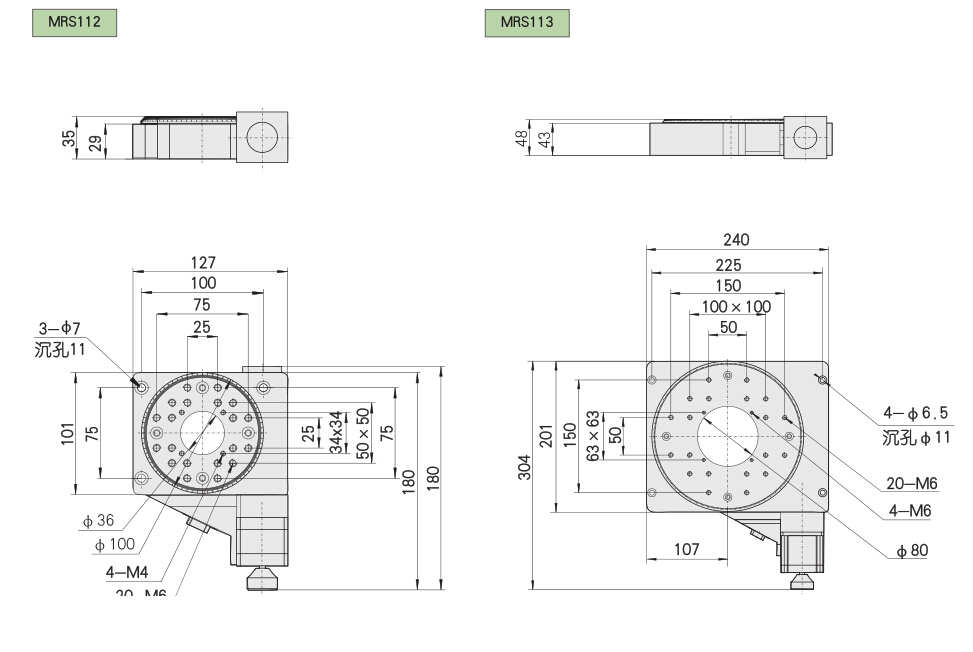

Stage sizemm

φ100

φ200

Gear ratio

180:1

Resolution

0.0002°

Resetting positioning accuracy

0.005°

Radial runout(μm

15

Axial run out(μm

15

Maximum speed

25°/s

Stepper motor1.8°)

42 stepper motor

56 stepper motor

Loading capacity(kg)

35

60

Weightkg

2.1

7.4
