TS411、TS413 translation stages

    1. Dovetail slide guides ,driving by a gear rack of the helical gear

    2. Lock handwheel in stage's side .

    3. There are connecting holes with standard pich on the top and lower part, convenient to connect it with the other translation stages or compose multi dimensional translation stage.

  • description
  • parameters

TS411、TS413 translation stages



1. Dovetail slide guides ,driving by a gear rack of the helical gear

2. Lock handwheel in stage's side .

3. There are connecting holes with standard pich on the top and lower part, convenient to connect it with the other translation stages or compose multi dimensional translation stage.



Model

TS411

TS413

Table size mm

40×40

40×80

Travel mm

20

60

Graduationmm

1

Resolutionmm

0.05

Precisionmm

0. 1

Loading capacity (kg)

6

8

Weight kg

0.25

0.45

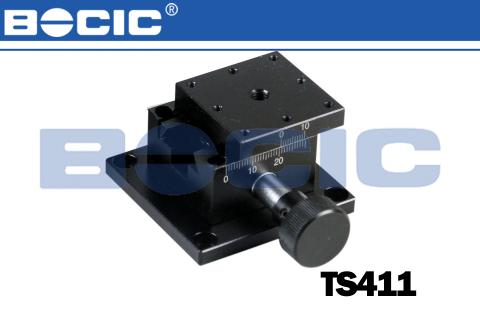

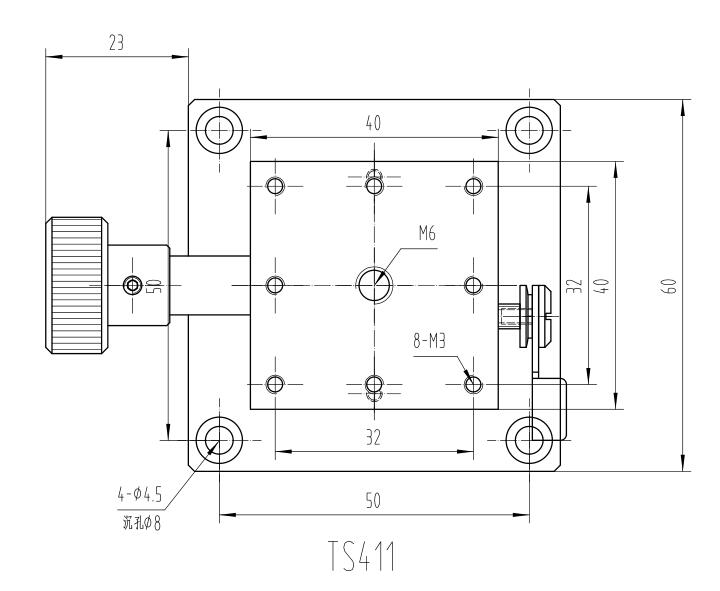

TS411:

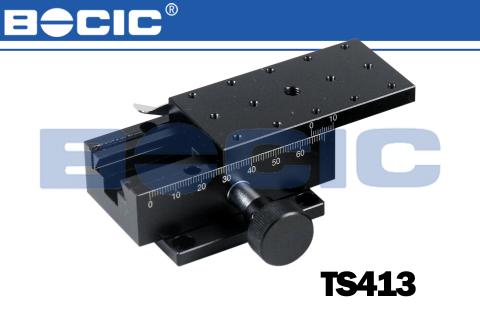

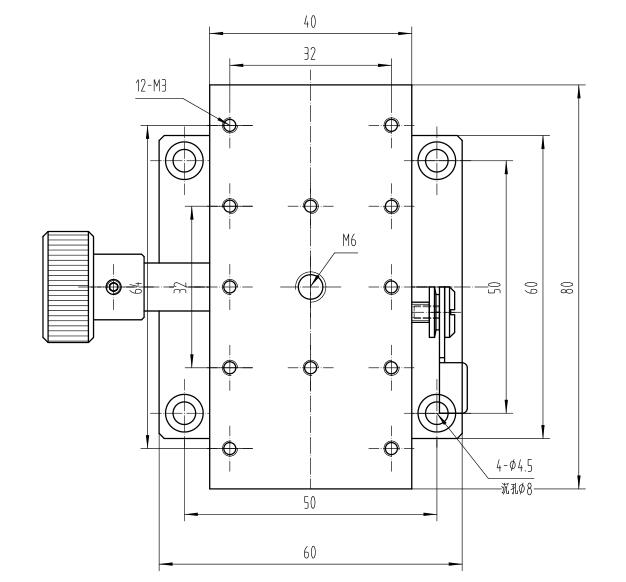

TS413:
