MTS360 series translation stages

    1.Actuated with ball screw andlinear guides

    2. Small size and high precision

    3.Controller usesstandard RS232 interface

    4.Zero position photoelectric switch is included. Travel limit switches are located at both ends of the stage for accurate positioning and protection.

  • description
  • parameters

MTS360 series translation stages



1.Actuated with ball screw andlinear guides

2. Small size and high precision

3.Controller usesstandard RS232 interface

4.Zero position photoelectric switch is included. Travel limit switches are located at both ends of the stage for accurate positioning and protection.



Model

MTS361

MTS362

MTS363

MTS364

Travelmm

30

50

100

150

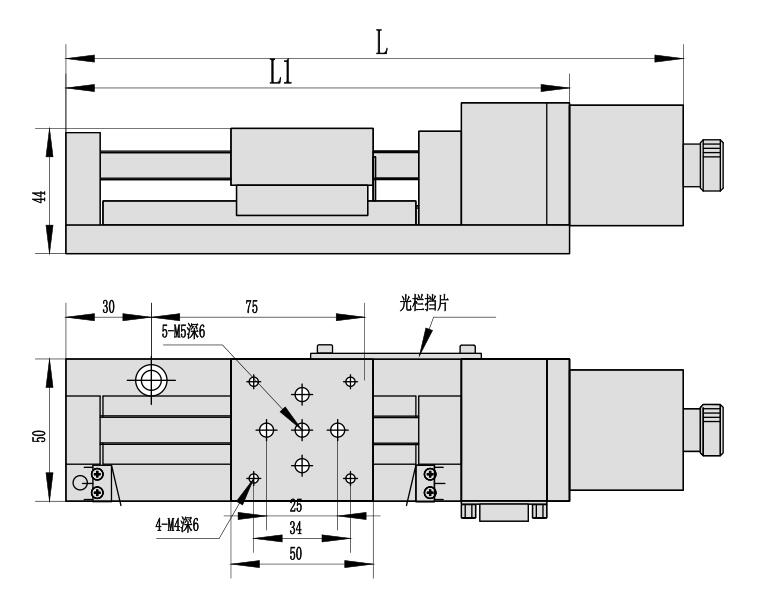

L1 (mm)

157

177

227

277

L  (mm)

197

217

275

333

Table size(mm)

50×50

Screw pitch(mm)

1

Maximum speed (mm/s)

10

Resetting positioning accuracy(mm)

±0.003

Loading capacity(kg)

10

10

8

7
