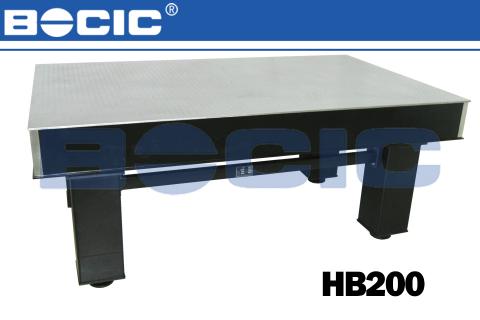

HB200 series optics table
1. Used high quality stainless steel in table top ,Core is Steel honeycomb
2. Planeness less than 0.05mm/m2, surface roughness less than 1.6μm
- description
- parameters
|
Model |
Table size（mm） |
Comment |
Weight（kg） |
|
HB201 |
1800×1200×800 |
4 supports，M6 screw hole array distance 25，max load 800 KG |
400 |
|
HB202 |
2000×1000×800 |
4 supports，M6 screw hole array distance 25，max load 800 KG |
450 |
|
HB203 |
2000×1200×800 |
4 supports，M6 screw hole array distance 25，max load 800 KG |
520 |
|
HB204 |
2400×1200×800 |
4 supports，M6 screw hole array distance 25，max load 800 KG |
650 |
|
HB205 |
3000×1000×800 |
6 supports，M6 screw hole array distance 50，max load 950 KG |
900 |
|
HB206 |
3000×1200×800 |
6 supports，M6 screw hole array distance 50，max load 950 KG |
1150 |
|
HB207 |
3000×1500×800 |
6 supports，M6 screw hole array distance 50，max load 950 KG |
1250 |
|
HB208 |
3500×1200×800 |
6 supports，M6 screw hole array distance 50，max load 1200 KG |
1350 |
|
HB209 |
3500×1500×800 |
6 supports，M6 screw hole array distance 50，max load 1200 KG |
1750 |
|
HB210 |
4000×1500×800 |
6 supports，M6 screw hole array distance 50，max load 1200 KG |
1850 |
|
HB211 |
4200×1500×800 |
6 supports，M6 screw hole array distance 125，max load 1500 KG |
2000 |
|
HB212 |
4800×1500×800 |
8 supports，M6 screw hole array distance 125，max load 2500 KG |
2300 |
|
HB213 |
5400×1500×800 |
8 supports，M6 screw hole array distance 125，max load 2500 KG |
2600 |
|
HB214 |
6000×1500×800 |
8 supports，M6 screw hole array distance 125，max load 2500 KG |
2900 |
