RCA100 rail carriers
1. Used with RA100 series optical sliding rail and can be combined various adjusting mounts into a coaxial optical system
2. A rigid locking hand wheel with plastic head, firm locking, not to hurt the slide rails
3. Mounting hole with a variety of standard hole position, strong applicability

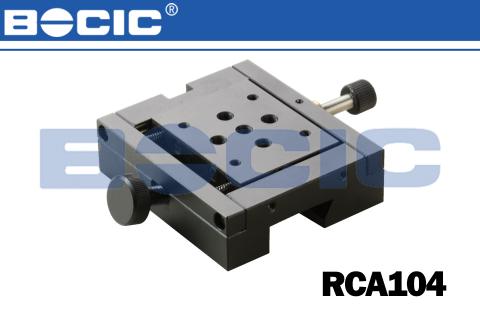

4. RCA104 rail carrier can be adjustment on transverse
- description
- parameters
|
Model |
RCA101 |
RCA102 |
RCA103 |
RCA104 |
|
Table size (mm） |
76×88 |
76×42 |
76×22 |
46×60 |
|
Fine adjustment（mm） |
- |
- |
- |
±5 |
|
Weight（kg） |
0.5 |
0.3 |
0.2 |
0.4 |
