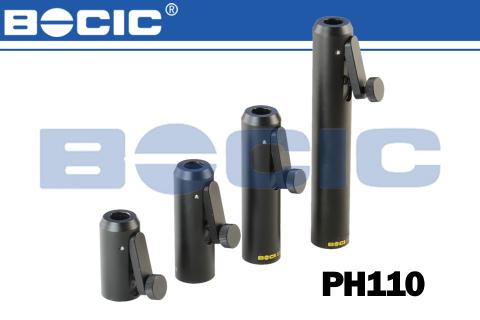

PH110 series posts holders
1. Support posts can be fixed at different height
2. Had V shape groove in axial , locking by lever
3. Had M6 tapped hole in bottom side , easy for fix in table
4. Used with diameter 12mm SP series support posts together
- description
- parameters
|
Model |
PH111 |
PH112 |
PH113 |
PH114 |
|

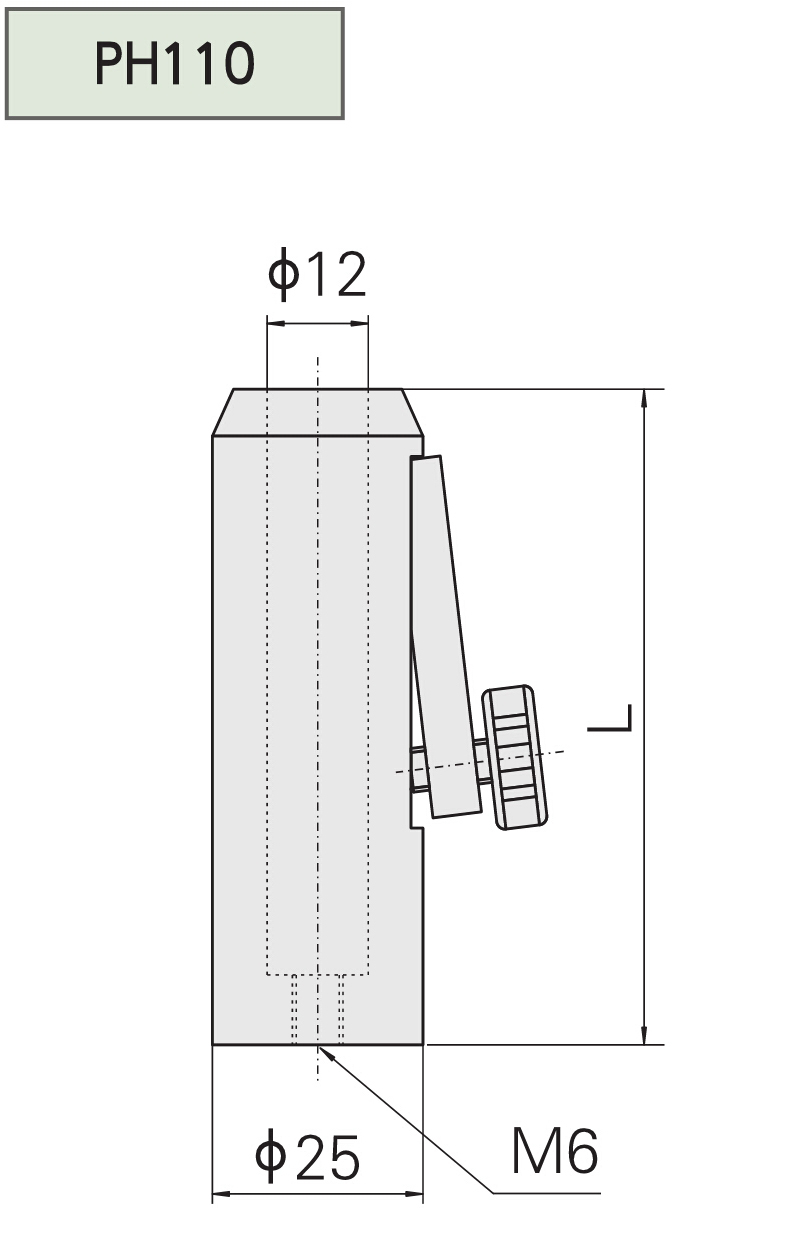

L（mm） |
52 |
75 |
100 |
150 |
|
Weight（kg） |
0.05 |
0.08 |
0.1 |
0.12 |
