PH100 series posts holders

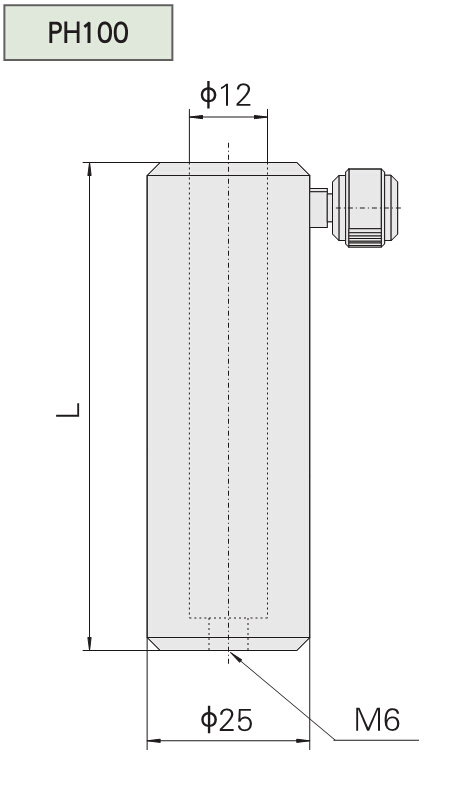

1. Support posts can be fixed at different height
2. Had V shape groove in axial , ensures stable locking
3. Had M6 tapped hole in bottom side , easy for fix in table
4. Used with diameter 12mm SP series support posts together
- description
- parameters
|
Model |
PH101 |
PH102 |
PH103 |
PH104 |
PH105 |
|
L（mm） |
25 |
50 |
75 |
100 |
150 |
|
Weight（kg） |
0.03 |
0.05 |
0.08 |
0.1 |
0.15 |
