AS100 series adjustable slits

    1. Slit is high and long

    2. Equipped with fold opening and a stop plate in order to avoid stray light

    3. Driving by micrometer head

  • description
  • parameters

AS100 series adjustable slits




1. Slit is high and long

2. Equipped with fold opening and a stop plate in order to avoid stray light

3. Driving by micrometer head


Model

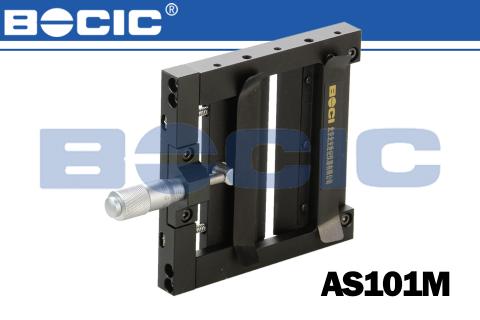

AS101M

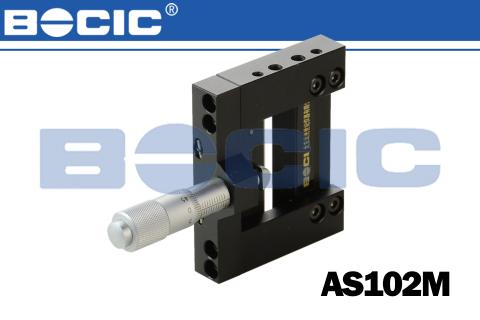

AS102M

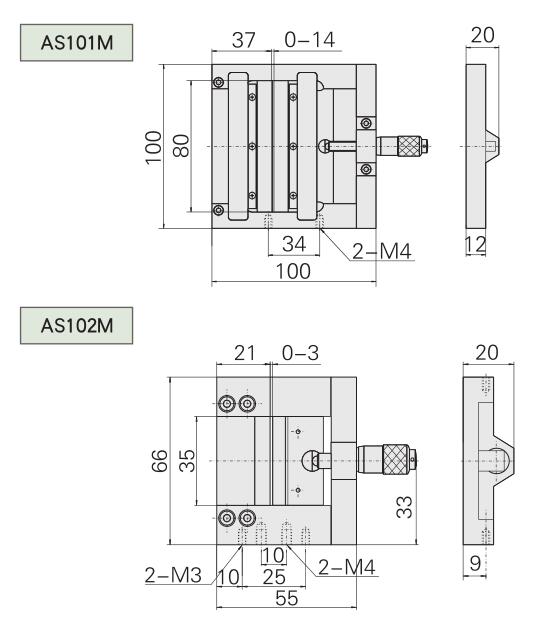

Width of slitmm

0 ~ 14

0 ~ 3

Height of slit mm

80max

35max

Driving

Micrometer head

Weightkg

0.35

0.15
