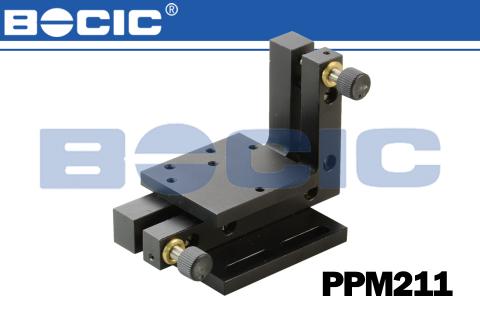

PPM211 prism mount
1. Provides two dimensional adjustment of tilt
2. M6×0.25 fine thread screw adjustment
- description
- parameters
|
Model |
PPM211 |
|
|
Table size（mm） |
52×58 |
|
|
Height of clamping（mm） |
30 |
|
|
Adjusting rang of tilt |
θx |
±5° |
|
θy |
±5° |
|
|
Weight（kg） |
0.2 |
|
