GM203、GM203B mirror mounts
1. Make the lens three dimensional translation and two dimensional tilt
2. Tx had fast translation , stable and reliable ,and can locking .

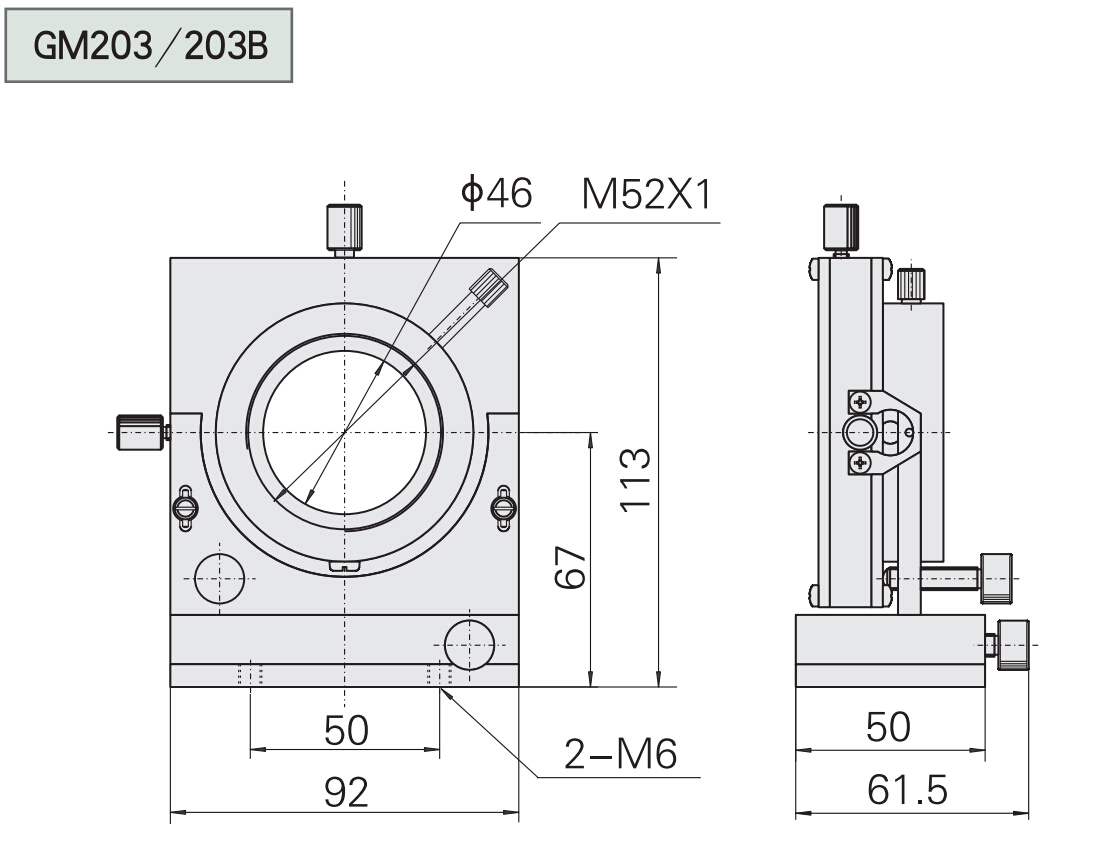

3. M6×0.25 fine thread screw adjustment
4. M52×1 standard thread hole
5. Pressing lens by a thread screwing rotation
- description
- parameters
|
Model |
GM203 |
GM203B |
|
|
Applied diameter（mm） |
Φ50 |
Φ50.8 |
|
|
Adjusting range of translation (mm) |
Tx |
6 |
|
|
Ty |
±2.5 |
||
|
Tz |
±2.5 |
||
|
Adjusting rang of tilt |
θy |
±2° |
|
|
θz |
±4° |
||
|
Weight（kg） |
0.7 |
0.7 |
|
