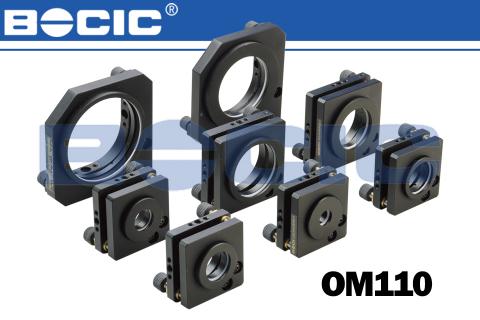

OM110 series mirror mounts
1. Provides two dimensional tilt adjustment
2. M6×0.25 fine thread screw adjustment
3. Imported dish shape spring reset
4. Barrel clamping lens
- description
- parameters
|
Model |
OM111 |
OM112 |
OM113 |
OM113B |
OM114 |
OM115 |
OM116 |
OM117 |
OM118 |
|

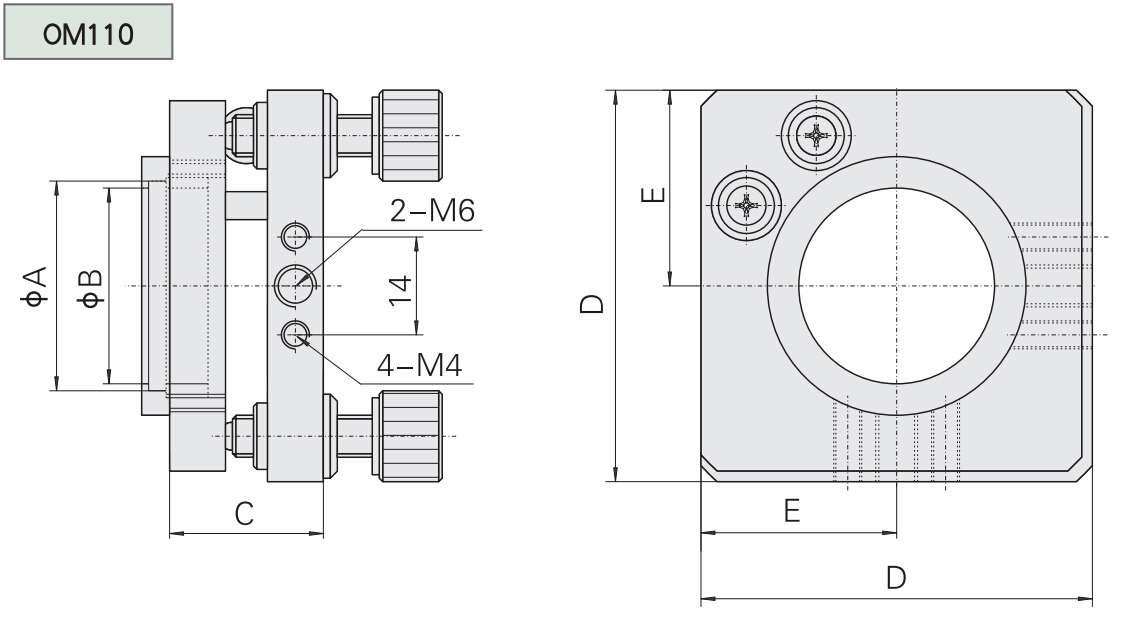

ΦA Applied diameter |
15 |
20 |
25 |
25.4 |
30 |
40 |
50 |
60 |
76.2 |
|
B |
13 |
18 |
23 |
23 |
28 |
38 |
47 |
58 |
74 |
|
C |
22 |
22 |
22 |
22 |
22 |
28 |
28 |
30 |
30 |
|
D |
56 |
56 |
56 |
56 |
56 |
70 |
70 |
99 |
99 |
|
E |
28 |
28 |
28 |
28 |
28 |
36 |
36 |
54 |
54 |
|
Adjustment range |
±2.5° |
||||||||
|
Weight（kg） |
0.15 |
0.15 |
0.15 |
0.15 |
0.15 |
0.20 |
0.20 |
0.25 |
0.26 |
