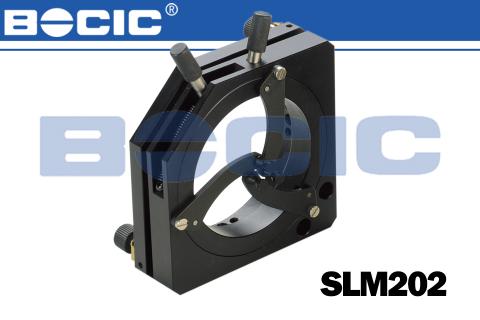

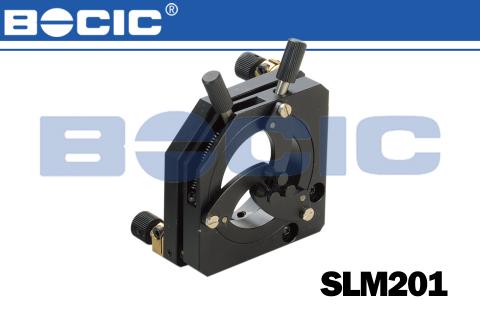

SLM200 series self-centering lens mounts
1. Three pivots of the coaxial lens mounts continuously open simultaneously, automatic reset by spring
2. When the replacement of lens, center of lens will be not changed
3. Two dimensional tilt adjustment driving by M6×25 fine thread screw
- description
- parameters
|
Model |
SLM201 |
SLM202 |
|
|
Applied diameter ΦA |
MIN |
5 |
5 |
|
MAX |
50 |
76 |
|
|
Adjusting rang of tilt |
±5° |
±5° |
|
|
C |
26 |
31 |
|
|
D |
74 |
104 |
|
|
E |
39 |
51 |
|
|
F |
34 |
39 |
|
|
Weight（kg） |
0.25 |
0.3 |
|
