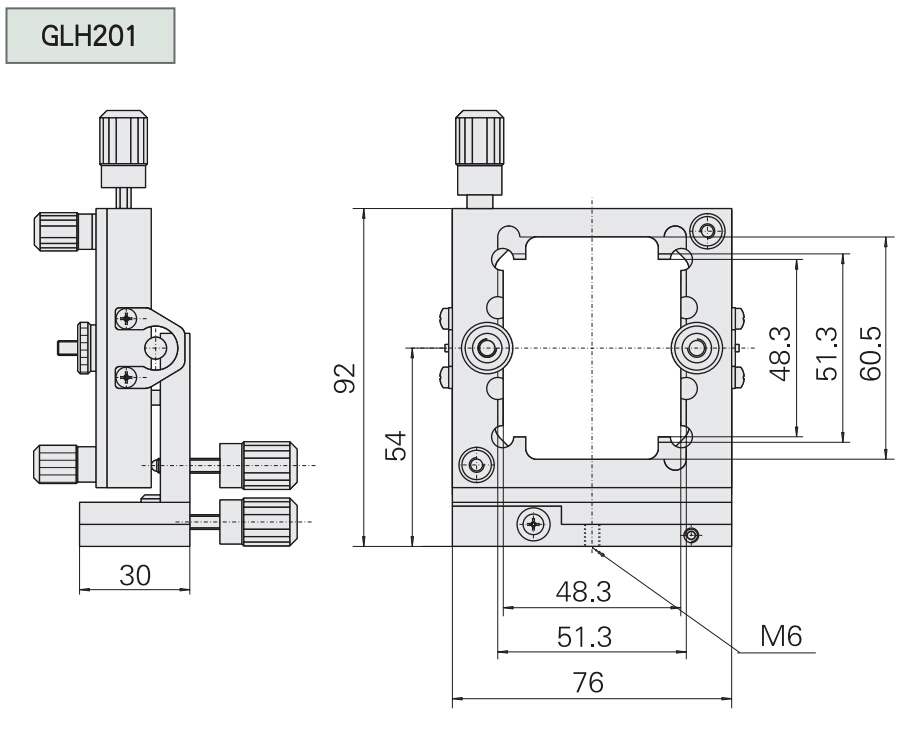

GLH201 gimbal mounts for cylindrical lenses
1. Make the cylindrical lens tilt adjustment with two dimensional orthogonal coplanarity
2. Rotation adjustment around the optical axis
3. Had lock hand wheel in three axis
4. Driving by fine thread screw
- description
- parameters
|
Model |
GLH201 |
|
|
Adjusting rang of tilt |
θy |
±4° |
|
θz |
±4° |
|
|
Range of rotation adjustment |
θx |
±5° |
|
Length of clamping（mm） |
50~50.8 |
|
|
Width of clamping（mm） |
60.5 |
|
|
Weight（kg） |
0.4 |
|
