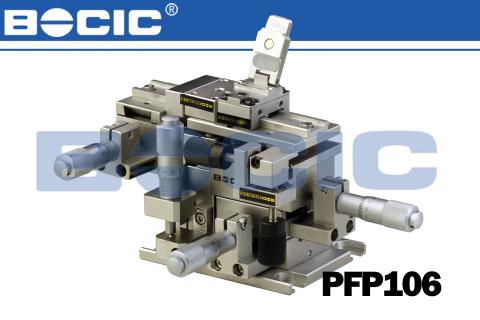

PFP106 fiber positioning system
1. Six axis adjustment
2. With a dovetail mount , can be used for fix the mount of optical parts
3. Hands paired design
- description
- parameters
|
Model |
PFP106 |
|
|
Adjustment range（mm） |
Tx |
12 |
|
Ty |
12 |
|
|
Tz |
6 |
|
|
θx |
±10° |
|
|
θy |
±5° |
|
|
θz |
±5° |
|
|
Center height of optical path（mm） |
79 |
|
|
Resolution（mm） |
0.001 |
|
|
Weight（kg） |
1.7 |
|
