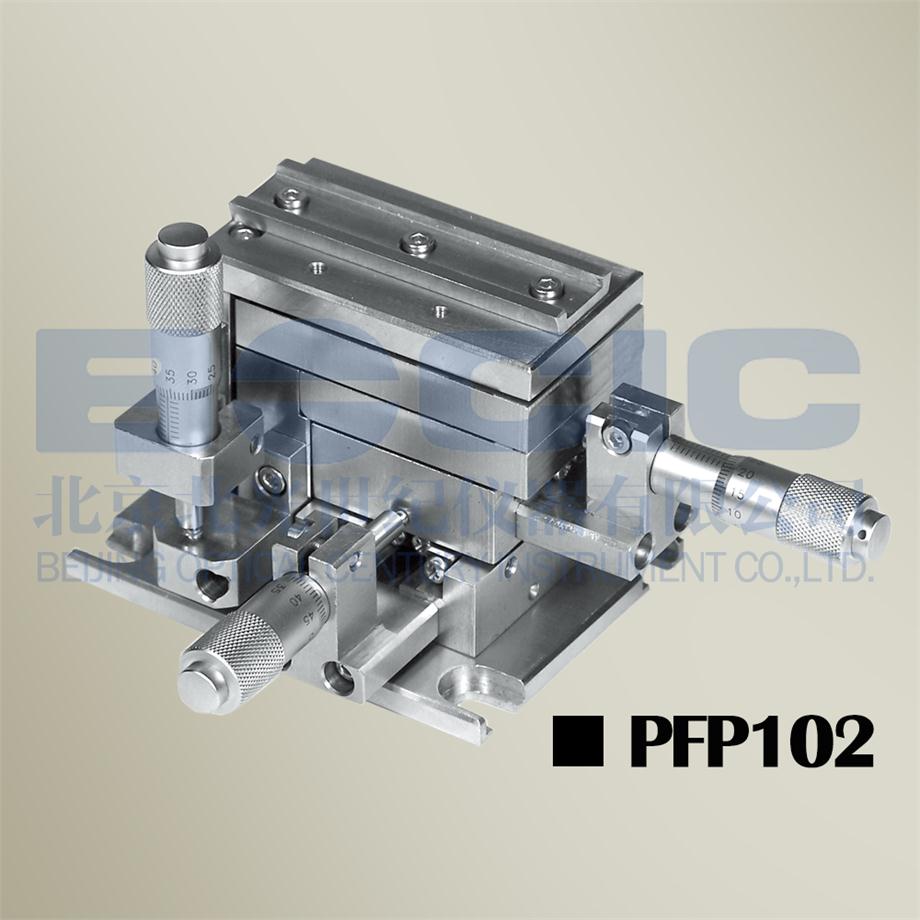

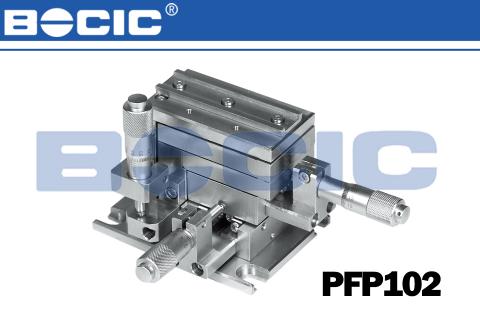

PFP102 fiber positioning system
1. Three axis adjustment
2. With a dovetail mount , can be used for fix the mount of optical parts
3. Hands paired design
- description
- parameters
|
Model |
PFP102 |
|
|
Adjusting range of translation（mm） |
Tx |
12 |
|
Ty |
12 |
|
|
Tz |
6 |
|
|
Center height of optical path（mm） |
79 |
|
|
Swing（μrad） |
＜100 |
|
|
Loading capacity (kg) |
2.3 |
|
|
Weight（kg） |
0.9 |
|
