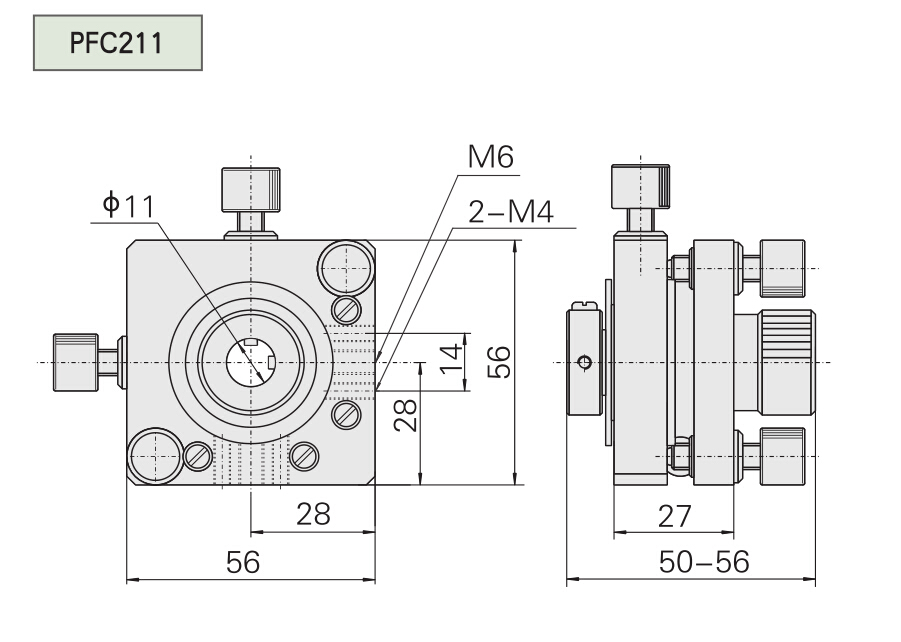

PFC211 precision fiber coupler
1. Five axis adjustment
2. Tx driving by hand wheel , M6×0.25 fine thread screw driving other four axis
- description
- parameters
|
Model |
PFC211 |
|
|
Applied diameter（mm） |
≤φ11 |
|
|
Adjusting range of translation（mm） |
Tx |
6 |
|
Ty |
±2 |
|
|
Tz |
±2 |
|
|
Adjusting range of tilt |
θy |
±4° |
|
θz |
±4° |
|
|
Weight（kg） |
0.3 |
|
