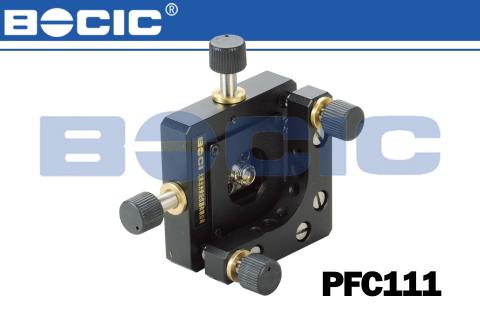

PFC111 precision fiber coupler
1. Can provide the two translations for the fiber and two tilted adjusting ,four degrees of freedom.
2. M6×0.25 fine thread screw driving four axis
3. Standard FC or SMA905 interface
- description
- parameters
|
Model |
PFC111 |
|
|
Adjusting range of translation（mm） |
Ty |
±2 |
|
Tz |
±2 |
|
|
Adjusting range of tilt |
θy |
±4° |
|
θz |
±4° |
|
|
Weight（kg） |
0.18 |
|
