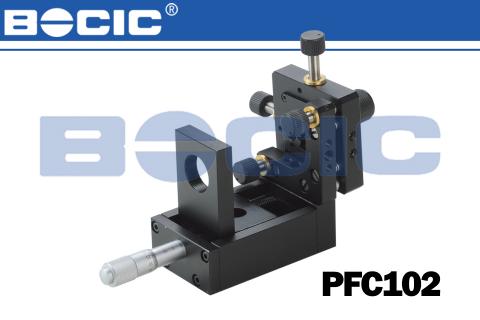

PFC102 precision fiber coupler
1. Increase a micro lens mount on the basis of PFC101 fiber coupler, convenient to use a microscope objective to couple both beam and optical fiber
2. Driving by micrometer head, Continuously measure the distance between the objective and pinhole
3. There are connecting holes on the lower part, convenient to connect it with the other stages or compose multi dimensional stage.
- description
- parameters
|
Model |
PFC102 |
|
|
Applied diameter（mm） |
≤φ6.35 |
|
|
Adjusting range of objective（mm） |
Tx |
13 |
|
Adjusting range of translation（mm） |
Tx |
6 |
|
Ty |
±2 |
|
|
Tz |
±2 |
|
|
Adjusting range of tilt |
θy |
±4° |
|
θz |
±4° |
|
|
Weight（kg） |
0.45 |
|
