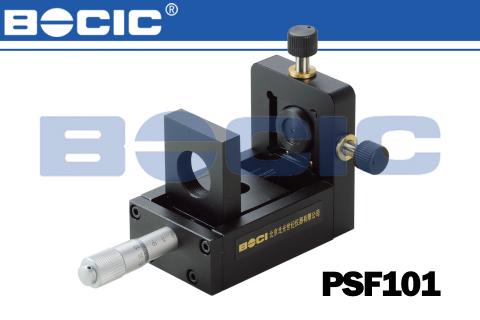

PSF101 precision spatial filters
1. The mount of micro objective will be adjusted by the micrometer head
2. Continuously measure the distance between the objective and pinhole .
3. Guide rail adopts precision linear ball guide with stable movement and high precision
4. There are two M6x0.25 fine thread screw on the mount of the pinhole ,so the position of the pinhole can be exactly adjusted by the aid of two dimensions moving
- description
- parameters
|
Model |
PSF101 |
|
|
Adjusting range of objective（mm） |
Tx |
13 |
|
Adjusting range of pinhole（mm） |
Ty |
±1.5 |
|
Tz |
±1.5 |
|
|
Minimum reading（mm） |
0.01 |
|
|
Accuracy of adjustment （mm） |
0.005 |
|
|
Weight（kg） |
0.8 |
|
