TMS210 series multi-axis positioning stages
1.Actuated
with crossroller bearing guides that provide large load capacity and higher
precision.
2.Driven withmicrometer head.
3.The
motion can be easily locked withthe knobon the side of the stage.
4.Separate
models are available for right-hand and left-hand use.
- description
- parameters
|
Model |

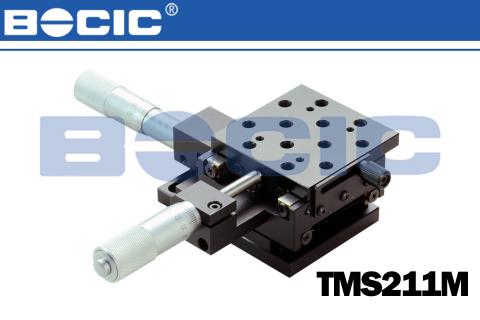

TMS211M |

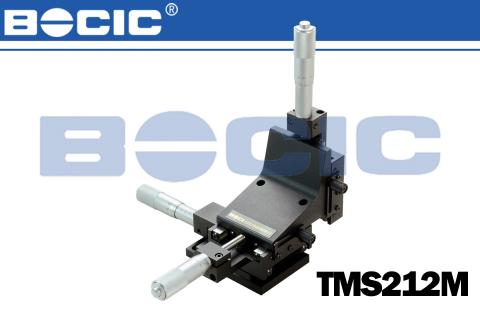

TMS212M |
|
Axles |
XY two axles |
XYZ three axles |
|
Travel （mm） |
25 |
|
|
Driving |
micrometer head |
|
|
Graduation（mm） |
0.01 |
|
|
Resolution（mm） |
0.002 |
|
|
Error of swing |
＜20″ |
|
|
Loading capacity (kg) |
6 |
2.5 |
|
Weight （kg） |
0.8 |
1.55 |
