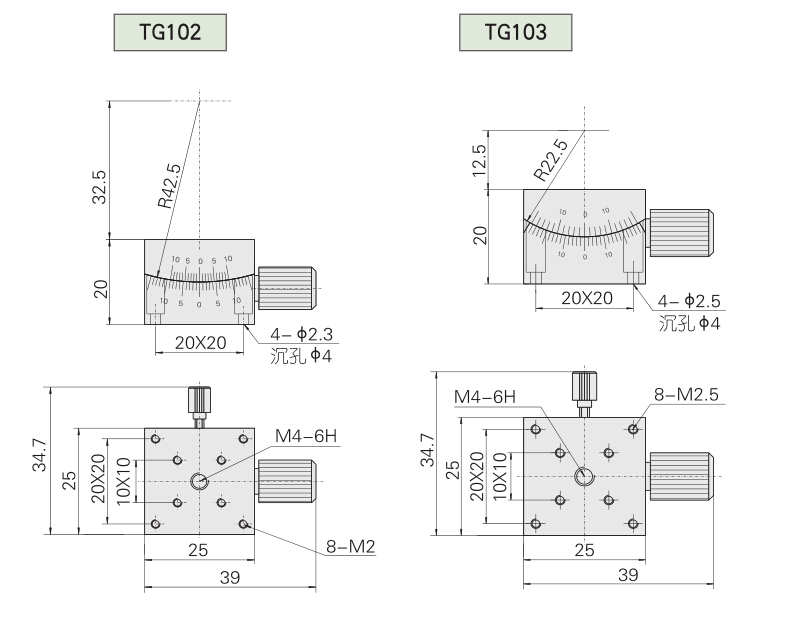

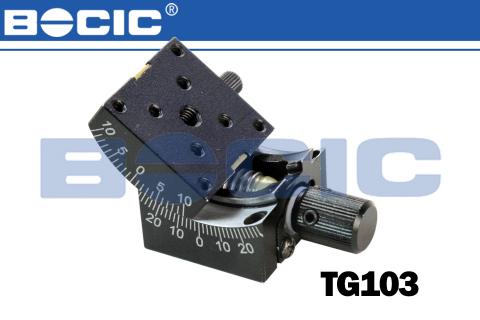

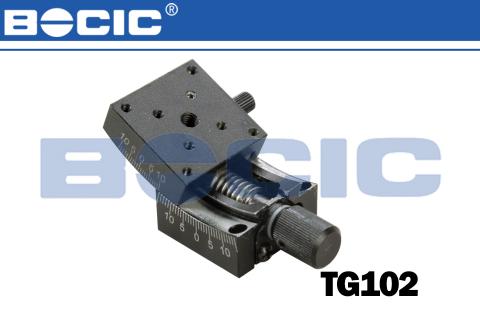

TG102/TG103 precision positioning stage
1.High quality worm gear pair
ensuresprecise and reliabletranslation.
2.TG102 can be stackedwith TG103, allowing
the two stages to share the same rotation center.
3.The motion can be easily locked with the
knobon the side of the stage, making it safe and reliable.
- description
- parameters
|
Model |
TG102 |
TG103 |
|
Table size （mm） |
25×25 |
|
|
Adjustment range |
±15º |
±20º |
|
Minimum reading |
0.1 º |
0.2° |
|
Graduation |
1° |
2° |
|
Axis height（mm） |
32.5 |
12.5 |
|
Loading capacity (kg) |
2 |
2 |
|
Weight （kg） |
0.035 |
0.035 |
