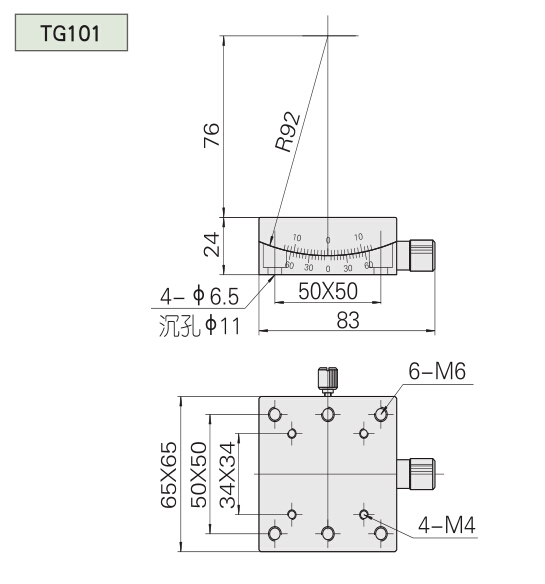

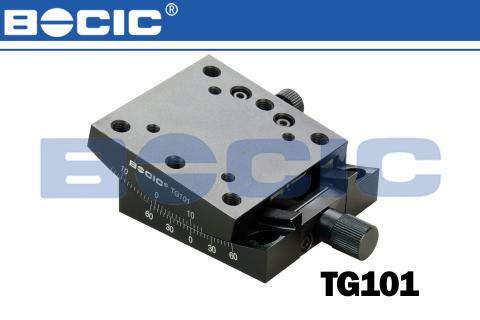

TG101 precision positioning stage
1.High quality worm gear pair
ensuresprecise and reliabletranslation.
2.Standard threaded holes on both top and
bottom of the stages allow secure mounting to optical tables, or additional
stages for multi-axes translation.
- description
- parameters
|
Model |
TG101 |
|
Table size （mm） |
65×65 |
|
Adjustment range |
±10º |
|
Minimum reading |
5＇ |
|
Graduation |
1º |
|
Axis height（mm） |
76 |
|
Loading capacity (kg) |
6 |
|
Weight （kg） |
0.6 |
