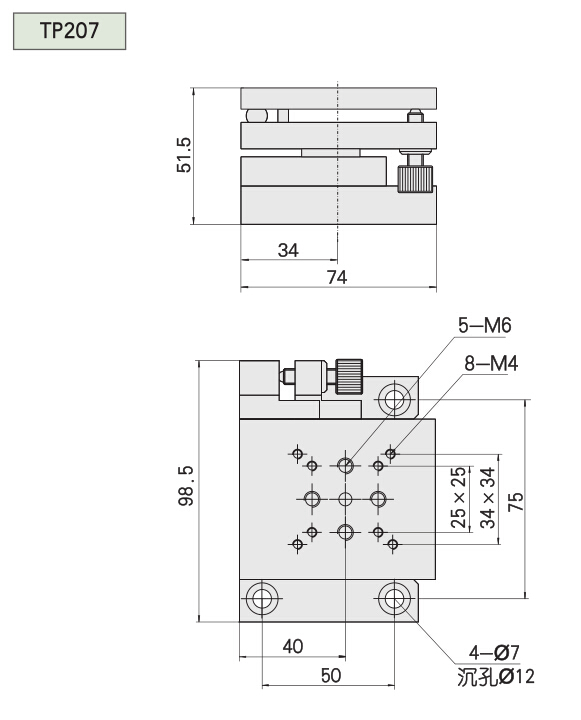

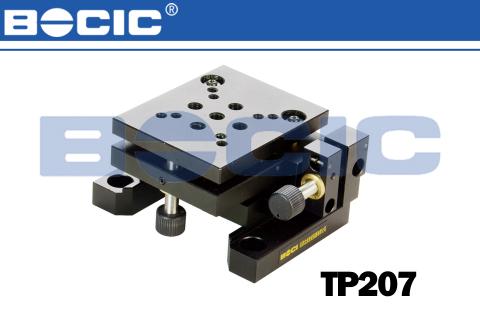

TP207 multi-axis tilt platforms
1.The stages provide two dimensional pitch and yaw adjustment.
2.Axis for horizontal rotationdoes not change.
3.Driven with fine thread screws.
- description
- parameters
|
Model |
TP207M |
|
Table size （mm） |
60×74 |
|
Tilt angle |
±5º |
|
Rotation angle |
±2° |
|
Driving |
Micrometer head |
|
Loading capacity (kg) |
2.5 |
|
Weight （kg） |
0.3 |
