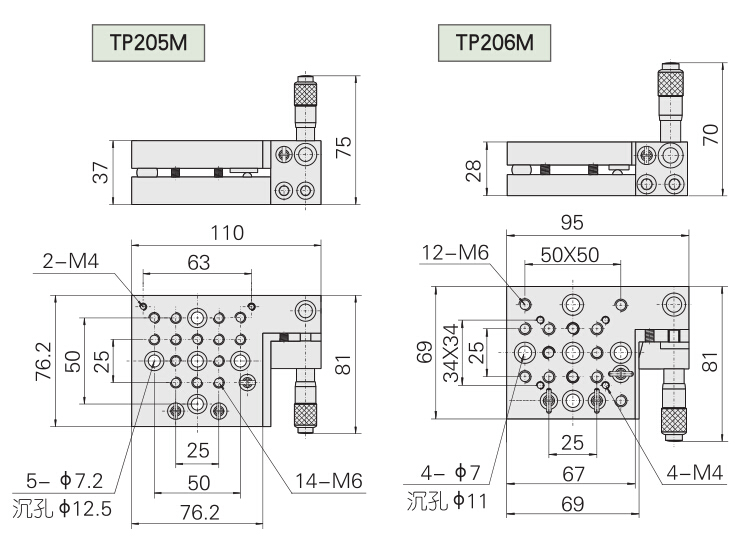

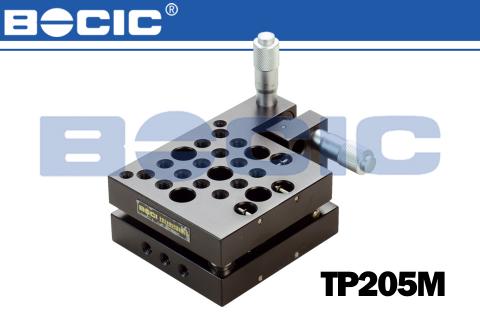

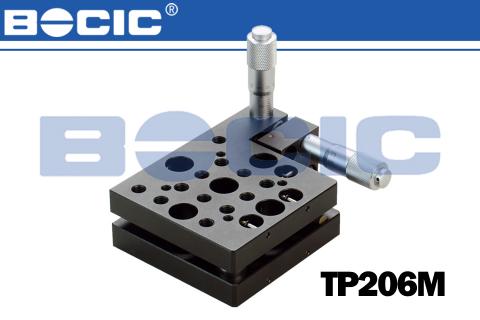

TP205M、TP206M precision tilt platforms
1.The stages provide two dimensional pitch and yaw adjustment.
2.Driven with micrometerhead.
3.High quality disk reset spring.
- description
- parameters
|
Model |
TP205M |
TP206M |
|
Table size （mm） |
76×76 |
69×69 |
|
Tilt angle |
±5 |
±2° |
|
Rotation angle |
±2.5° |
±2° |
|
Graduation（mm） |
0.01 |
|
|
Driving |
Micrometer head |
|
|
Loading capacity (kg) |
8 |
6 |
|
Weight （kg） |
0.55 |
0.45 |
