VTS120 series precision vertical translation stages
1. High quality liner guide ensures smooth, reliable motion,
and high precision.
2.Driven with micrometer, allowing for quantitative reading.
- description
- parameters
|

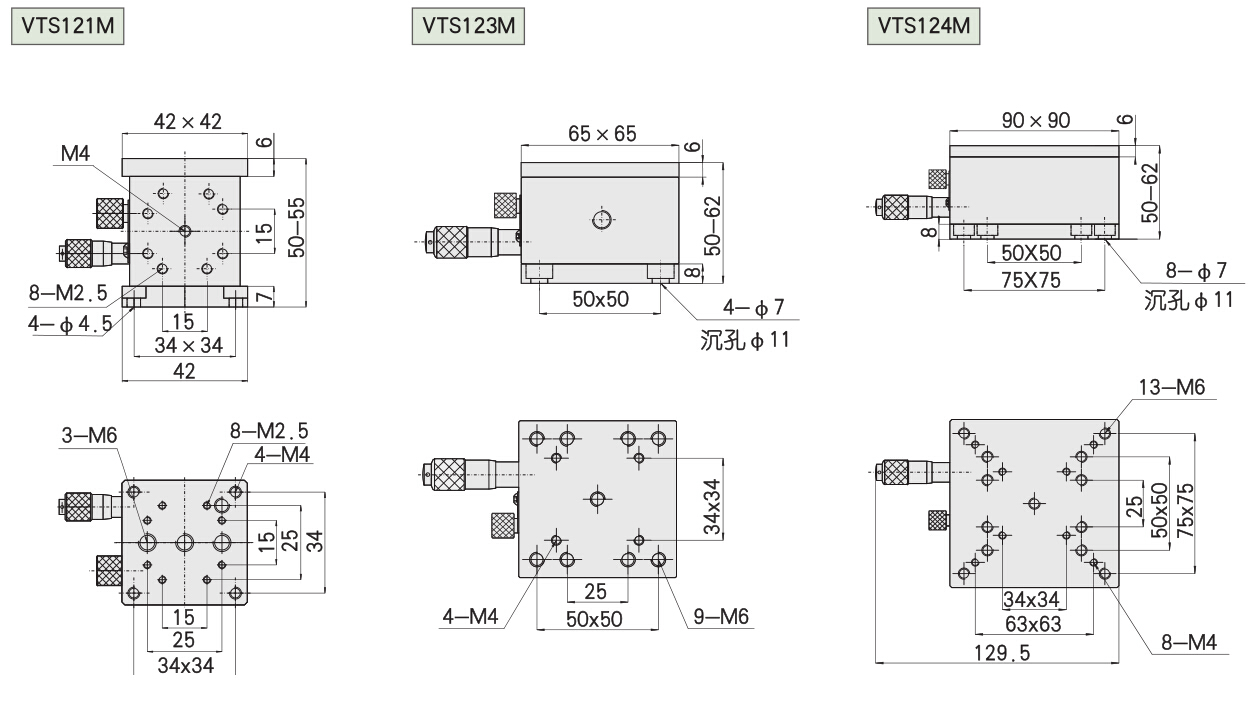

Model |

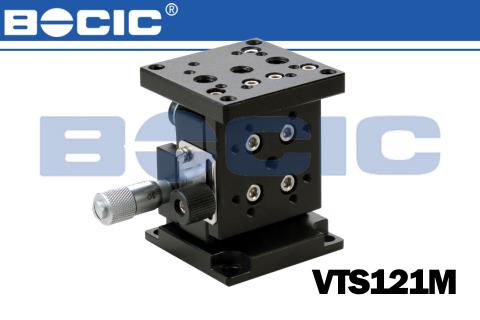

VTS121M |

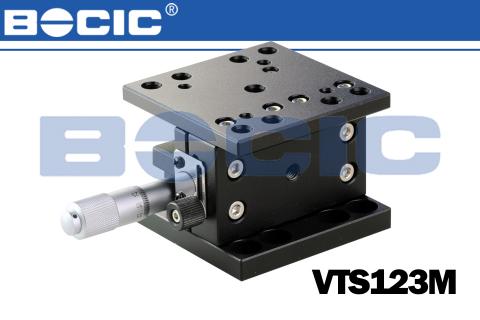

VTS123M |

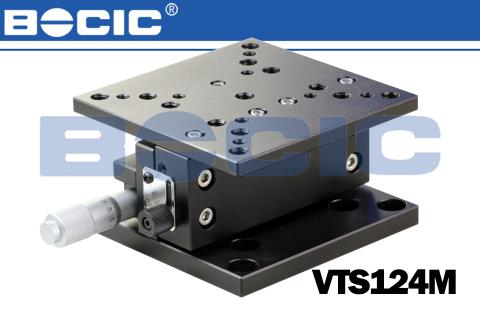

VTS124M |
|
Table size （mm） |
42×42 |
65×65 |
90×90 |
|
Travel （mm） |
5 |
12 |
12 |
|
Resolution（mm） |
0.002 |
||
|
Graduation（mm） |
0.01 |
||
|
Loading capacity (kg) |
2 |
3 |
5 |
|
Weight （kg） |
0.2 |
0.5 |
1.2 |
