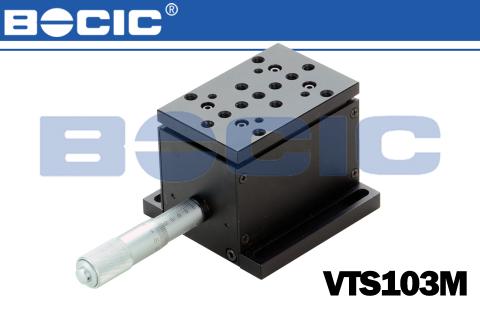

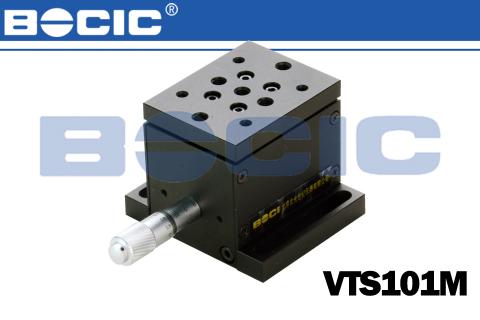

VTS101M/103M precision vertical translation stages
1.Vertical motion is
translated through two precision-machined, opposing wedge blocks,allowing for stable operation and high position precision.
2.Driven
with micrometers
- description
- parameters
|
Model |
VTS101M |
VTS103M |
|
Table size （mm） |
64×50 |
82×50 |
|
Travel （mm） |
5 |
12 |
|
Driving |
Micrometer head |
|
|
Graduation（mm） |
0.01 |
|
|
Resolution（mm） |
0.002 |
|
|
Precision（mm） |
0.005 |
|
|
Loading capacity (kg) |
10 |
12 |
|
Weight （kg） |
0.62 |
1.55 |
