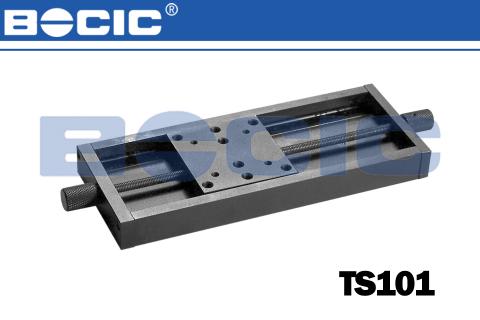

TS101 translation stages
1. Driven with dovetail slide guides at
stage's middle.
2.Long travel , large table size and large bearing capacity.
- description
- parameters
|
Model |
TS101 |
|
Table size （mm） |
60×63 |
|
Travel （mm） |
125 |
|
Precision（mm） |
0.05 |
|
Loading capacity (kg) |
20 |
|
Weight （kg） |
0.60 |
