PTS110 series precision thin design postitioning stages
1.Driven with linear rollerguide
2.Thin design,small size
3.Micrometer headadjustment
4.Micrometer locations can be either side
or middle of the stage.
5.The motion can be easily locked withthe
knobon the side of the stage.
6.Standard threaded holes on both top and
bottom of the stages allow secure mounting to optical tables, or additional
stages for multi-axes translation.
- description
- parameters
|

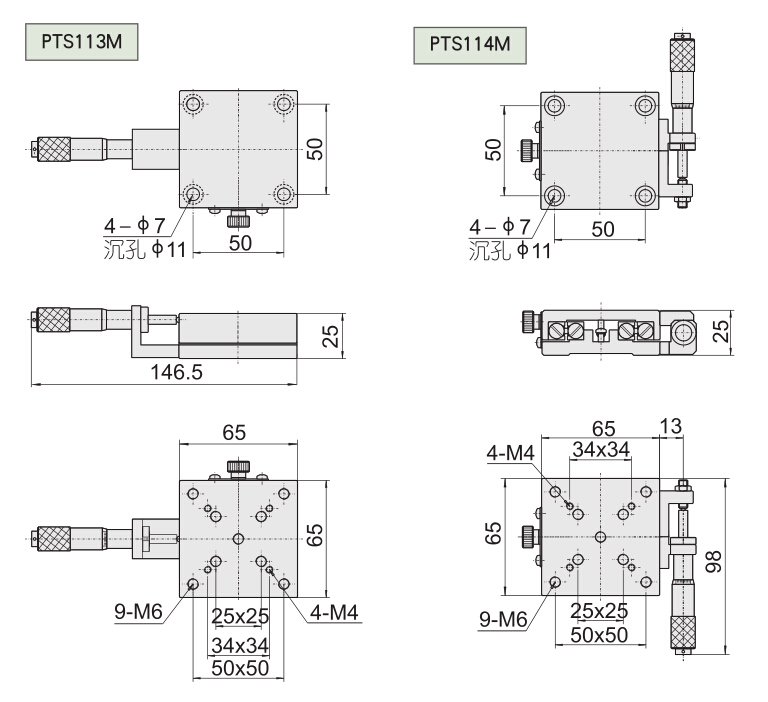

Model |

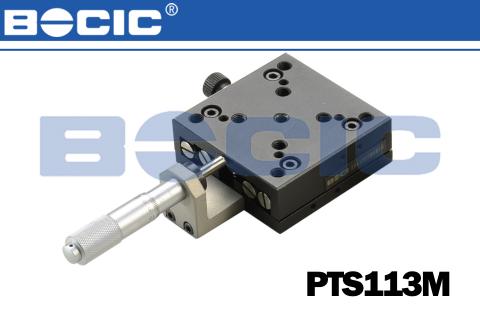

PTS113M |

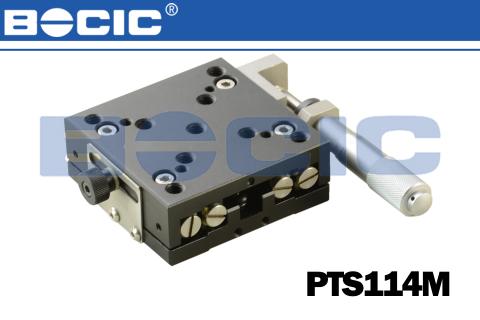

PTS114M |
|
Table size （mm） |
65×65 |
|
|
Travel （mm） |
25 |
|
|
Driving |
Micrometer head |
|
|
Resolution（mm） |
0.002 |
|
|
Precision（mm） |
0.005 |
|
|
Graduation（mm） |
0.001 |
|
|
Drive position |
middle |
side |
|
Lock handwheel |
have |
|
|
Loading capacity(kg) |
5 |
|
|
Weight （kg） |
0.4 |
|
